CHARVEL

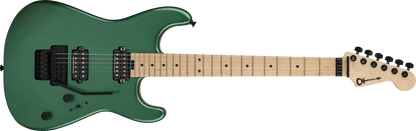

Charvel Pro-Mod San Dimas® Style 1 HH FR MPL, Maple Fingerboard, Pelham Green

Charvel Pro-Mod San Dimas® Style 1 HH FR MPL, Maple Fingerboard, Pelham Green

Regular price $969.99 USD
Regular price Sale price $969.99 USD
Sale Sold out
Shipping calculated at checkout.

FREE SHIPPING OVER $40 PURCHASES! exceptions -- Local Pickup Available

--We are now offering free local delivery on purchases over $100!-- If you are within 5 miles from one of our locations, just select ‘Local Delivery’ at checkout after you enter your address

- All photos are stock photos from Manufacturer unless noted in first line of description

-For quality assurance, all guitars are checked and setup when received.

DON'T FORGET GUITAR ACCESSORIES

Crafted from alder, the body is coupled with a bolt-on maple neck featuring a pair of graphite reinforcement rods to resist bending and warping under environmental stresses. The speed neck profile is designed for lightning fast playing and completely unhindered position shifts, while the comfortably rolled fingerboard edges provide the broken-in feel of an instrument with plenty of playing miles on it, and plenty more to go. Perfect for faster tempos, the 12"-16" compound radius maple fingerboard hosts 22 jumbo frets and white dot inlays. For regularly touring musicians, a heel-mount truss rod adjust thumbwheel is a must, allowing for quick and convenient neck relief tweaks.

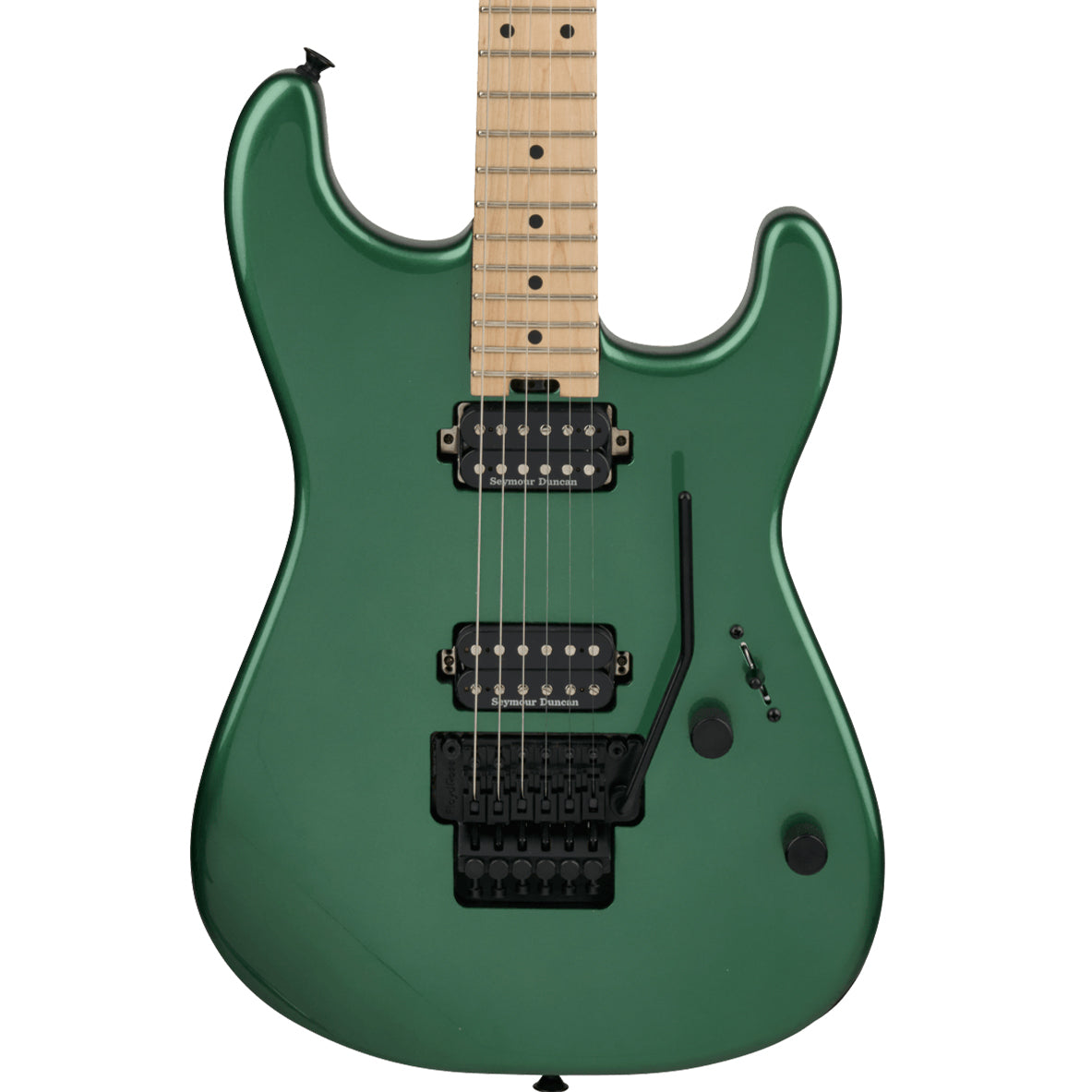

High-output Seymour Duncan® JB and Seymour Duncan '59™ humbucking pickups are directly mounted to the body, cranking out high octane rock 'n' roll tone with plenty of sweet overtones. The volume control conceals a push/pull coil split to have even more tonal variations on tap while the no-load tone control operates like a standard tone control from positions one through nine, removing itself from the circuit at position ten for transparent sound that lets the full natural voice of the guitar shine through. Dive to rumbling depths or add a well-placed rising harmonic without sacrificing your tuning with the Floyd Rose® 1000 Series double-locking tremolo bridge system.

Features

  • Alder body
  • Bolt-on maple neck with graphite reinforcement rods
  • 12"-16" compound radius maple fingerboard
  • 22 jumbo frets
  • Heel-mount truss rod adjust thumbwheel
  • Seymour Duncan® JB and Seymour Duncan '59™ humbucking pickups
  • Volume control with push/pull coil split and no-load tone
  • Recessed Floyd Rose® 1000 Series double-locking tremolo

Specs:

Neck

Licensed Fender® Stratocaster®
Maple
Hand-Rubbed Satin Urethane
Bolt-On with Graphite Reinforcement
12" to 16" Compound Radius (304.8 mm to 406.4 mm)
Maple
Black Dot
22
Dual-Action with Wheel
Floyd Rose® 1000 Series Locking
1.6875" (42.86 mm)
Floyd Rose® 1000 Series Locking
Jumbo
25.5" (648 mm)

Body

Alder
Gloss
San Dimas®
Alder

Hardware

Floyd Rose® 1000 Series Double-Locking Tremolo (Recessed)
None
Black
Knurled Flat-Top
Black
Black
Charvel®-Branded Die-Cast
Nickel Plated Steel (.009-.042 Gauges)
Floyd Rose® FRT O1000 Locking
Charvel®
Standard

Electronics

Seymour Duncan® JB™ TB-4
Seymour Duncan® '59™ SH-1N
HH
Volume (Push/Pull Coil Split), No-Load Tone
3-Position Blade: Position 1. Bridge Pickup, Position 2. Both Inner Coils, Position 3. Neck Pickup - (Split Engaged) - Position 1. Bridge Outer Coil, Position 2. Both Outer Coils, Position 3. Neck Outer Coil

Measurements

4.50x15.13x42.13 IN
11.25 LB
42.13 IN
4.50 IN
15.13 IN
