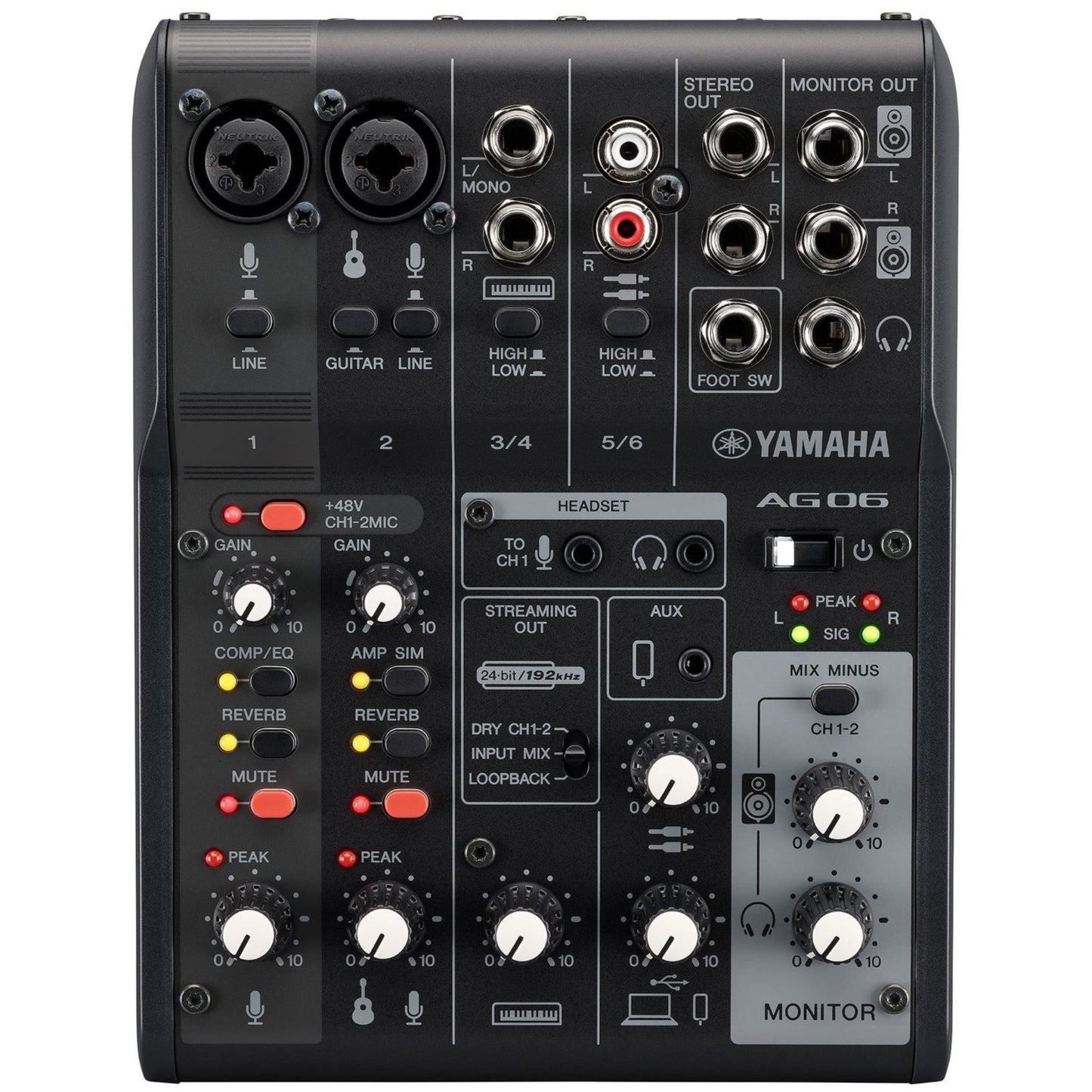

Yamaha AG06MK2, 6-Channel Live Streaming Loopback Audio USB Mixer

A 6-channel live streaming mixer with USB audio interface.

• Two condenser microphones can be used simultaneously
• +48 V phantom power on CH1-2 input for condenser mics or Dl boxes
• Hi-Z input for guitars on CH2
• High resolution (24-bit, 192 kHz) 2-track audio recording and playback
• 4-pole mini input/output (TRRS) to support a wider range of streaming applications
• Flexible inputs and LOOPBACK function ideal for live streaming or recording
• Mute button for convenient live streaming
• Easy control and pro sound with 1-TOUCH effects (COMP/EQ, REVERB and Amp Simulator)
• AG Controller (Windows/Mac/iOS ) for precise parameter control
• Windows/Mac support by USB-C connection
• iOS connectivity via Apple camera adaptor (requires external USB power supply)
• Android supported by 4-pole mini input/output (TRRS)
• USB-C power input (5 V DC, 900 mA)
• Cubase Al, WaveLab Cast, Cubasis LE and Rec'n'Share are available
• OBS Certified device. Provides seamless streaming experience with OBS Studio.

Two heads are better than one. The same can be said for microphone inputs, especially when it comes to live streaming. The AG06MK2 offers the same user-friendly configuration and operation that has become synonymous with the AG series, but also comes equipped with two phantom-powered mic inputs for condenser microphones. Combined with flexible connectivity, including an upgraded 4-pole mini I/O, the AG06MK2 opens a broader range of dialogue, interview, musical ensemble performance, or other streaming applications that the AG01 or AG03MK2 setups can’t cover.

The AG06MK2 allows you to connect two condenser microphones of your choice, as well as two stereo line inputs for instruments, and an upgraded 4-pole mini jack (TRRS) for smartphone input/output capability. Of course, it’s also possible to add audio from devices connected via USB in LOOPBACK mode as with previous AG models. This diverse range of connectivity makes it possible to use high-sensitivity microphones, along with each of the audio sources, for a variety of streaming applications such as podcasts with dialogue, interviews, vocal performances with an acoustic instrument, or even a live band.

With a design similar to a mixing console, the AG06MK2 is equipped with a variety of physical controls that help you shape and manage the audio you stream to your audience. The newly added mute button allows you to cut your mic input at a moment's notice if your situation demands it, and can even be controlled using Yamaha’s FC5 dedicated foot switch (sold separately) which can also add reverb to your signal while keeping your hands free for other tasks.

Shape your sound like a pro with zero-latency DSP effects

Regardless of your particular streaming application, you’ll want to give it some depth and dimension, which adds a level of professionalism. The AG06MK2 comes equipped with optimized 1-TOUCH COMP/EQ and REVERB controls to dial in the sound that best suits your style, and a 1-TOUCH amp simulator to add authenticity and punch to your guitar input.

All these tools are processed by the internal DSP chip so there’s no delay, making it particularly valuable for live streaming when real-time accuracy is crucial.

And when you want to capture pure, raw recordings through your preferred microphone and edit them later, you have the option to turn these effects off completely.
