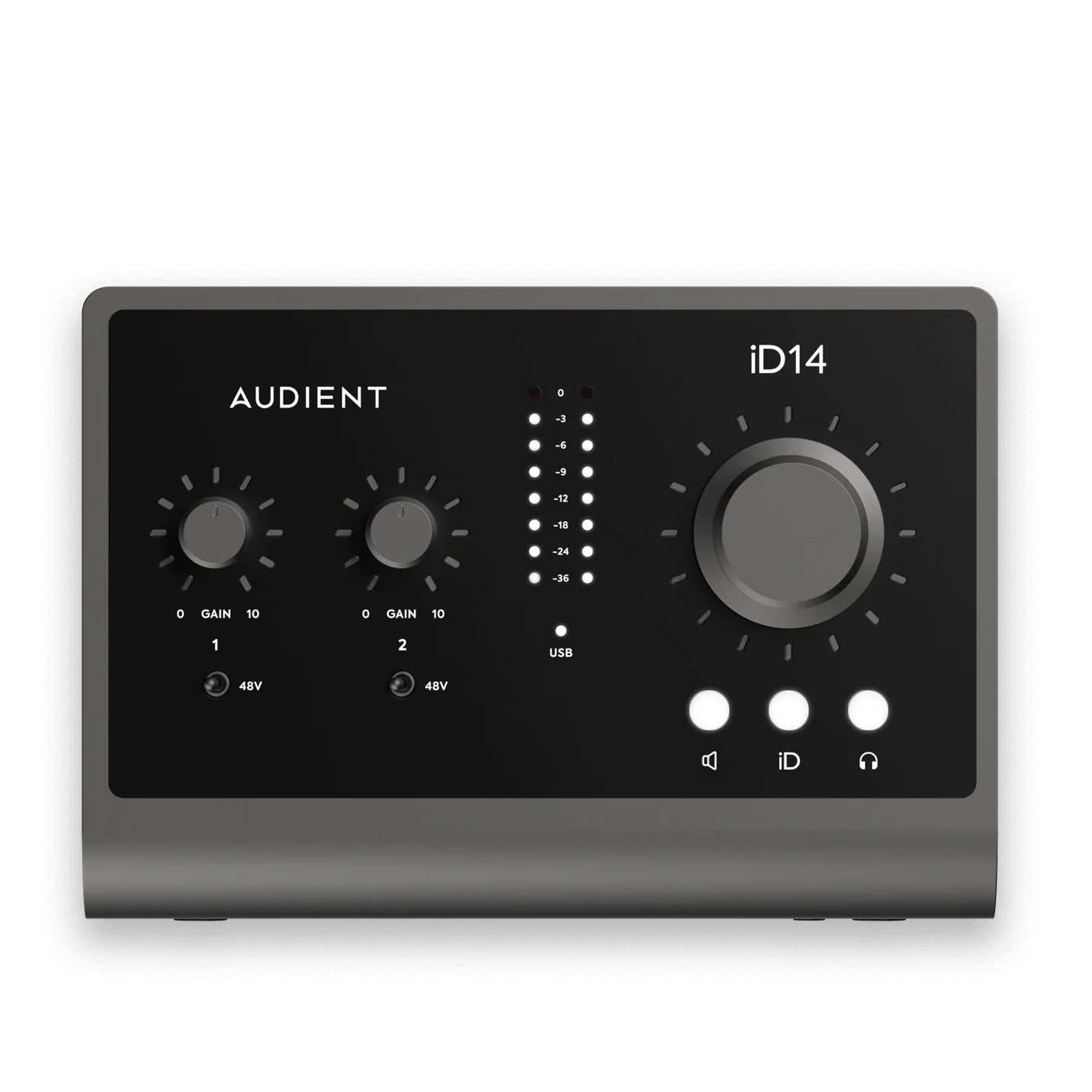

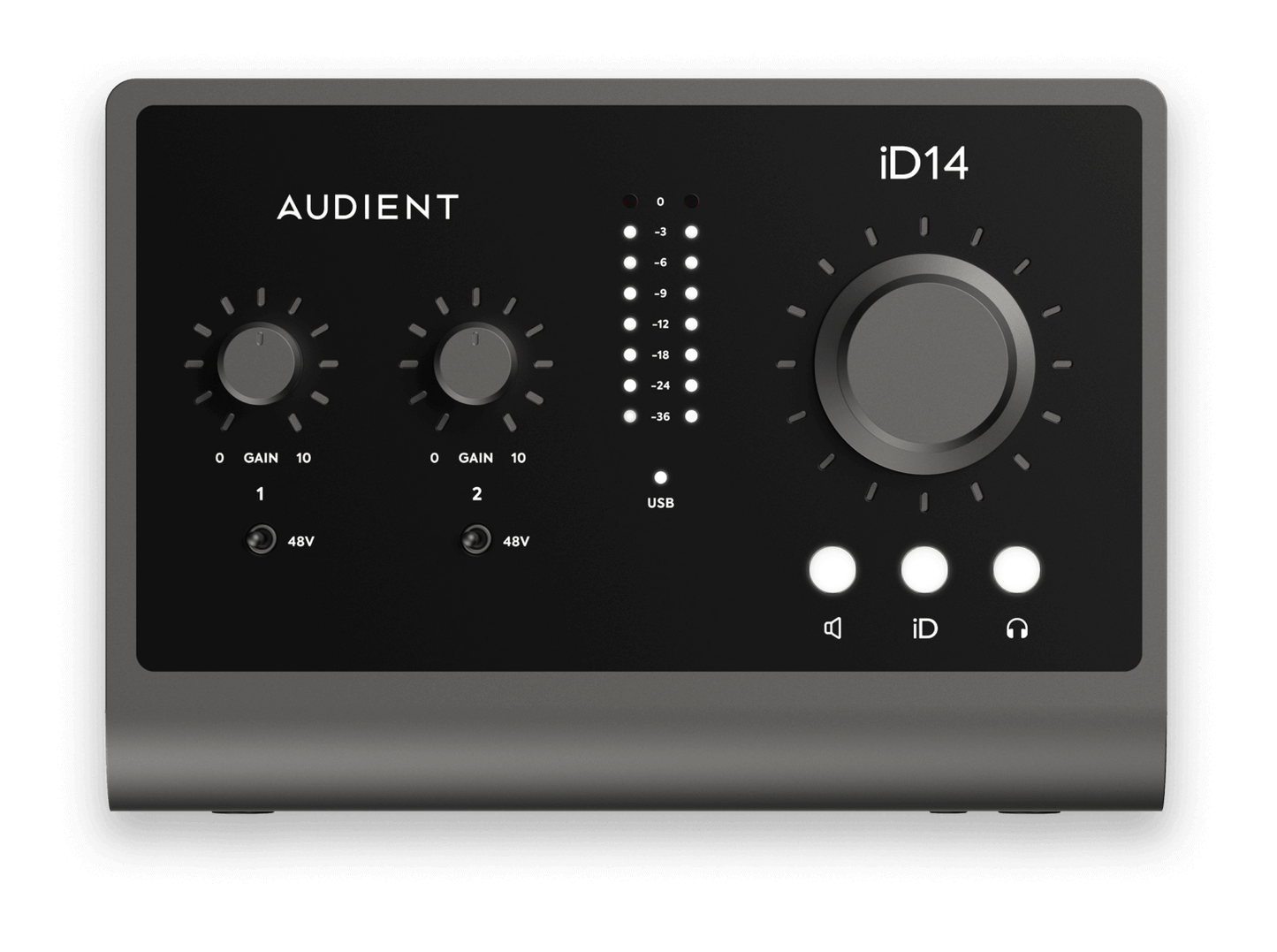

Audient ID14MKII, Audio Recording interface , 10in | 6out
Audient ID14MKII, Audio Recording interface , 10in | 6out
Regular price
$309.99 USD
Regular price
Sale price
$309.99 USD
Unit price
/
per
Shipping calculated at checkout.
FREE SHIPPING OVER $40 PURCHASES! exceptions -- Local Pickup Available
Couldn't load pickup availability
10in | 6out Audio Interface
Designed to take your recordings to the next level in every way, the iD14 (MKII) delivers professional audio performance in a compact and modern desktop package, giving you everything you need to make studio quality recordings at home.
Every iD interface features the Audient Console Mic Preamp, the same discrete circuit design found in our renowned recording console the ASP8024-HE. Designed to deliver ultra- low noise and low distortion with a touch of classic analogue warmth, iD14’s two Audient mic pre’s will give you the professional sound you deserve.
The Audient mic pre is a high grade hybrid discrete and op amp design that delivers a clean, accurate and detailed translation of your source.
Now that’s quiet
With a noise floor 30,000 times quieter than the signal level your recordings will be captured with stunning clarity.
iD14’s converters make sure you hear every nuance, every detail of your audio, enabling you to take your recordings to the next level. Offering an incredible 126dB of dynamic range you will hear your audio more accurately, make better creative decisions and experience stunning clarity directly from your desktop.

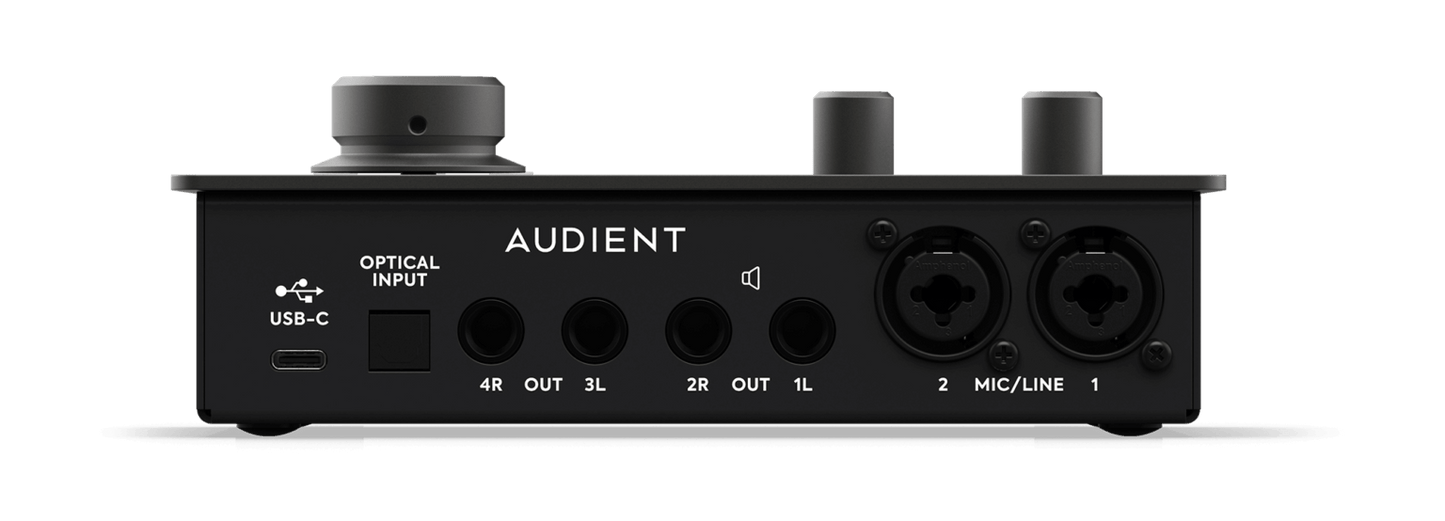

Connect and listen to your mixes through two sets of speakers with iD14’s four line outputs. Alternatively use the extra line outputs to send audio to an external headphone amp for distribution to your artists.
Equipped with both a jack and mini jack connection and a powerful headphone amp capable of driving headphones up to 600Ohms, iD14 is ready to take on the most demanding recording sessions.
Designed to replicate the input stage of a classic valve amplifier, iD14’s harmonically rich JFET Instrument Input is the perfect sonic foundation for your guitar or bass and amp sims.
Experience ultra low latency
Keep it simple with the powerful but intuitive iD Mixer. Create and customise low latency headphone mixes, utilise the flexible monitor control or simply keep an eye on your levels – all from one easy to use app.
Specs:
D.I / Instrument Input
RANGE:+58dB
LINEUP:12dBu = 0dBFS
THD+N @ 0dBu:0.1%
SNR:100dBu A-Weighted
FREQUENCY RESPONSE – MIN GAIN:±0.5dB 10Hz to 20kHz
1/4” TS JACK:Tip (Hot) & Sleeve (Shield)
Microphone Preamplifier
GAIN RANGE: 58dB
LINEUP:12dBu = 0dBFS
MIC MAX INPUT LEVEL:12dBu
MAX INPUT LEVEL:21dBu
INPUT IMPEDANCE (Mic):2.8k
INPUT IMPEDANCE (Line):>8k
THD+N @ 0dBu:0.00170%
THD+N @ 0dBu MAX GAIN:<0.04%
SNR:101dBu A-Weighted
EIN:129dB A-Weighted
CMRR @ 1k:>75dB
CROSSTALK:>-100dB
FREQUENCY RESPONSE – MIN GAIN:±0.5dB 10Hz to 40kHz
PHANTOM POWER: (48V +/-4V @ 10mA/Channel)
XLR COMBI FEMALE:Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)
1/4” TRS JACK:Tip (Hot), Ring (Cold) & Sleeve (Shield)
Analogue to Digital Converter
THD+N @ -1dBFS:0.001%
DYNAMIC RANGE:120dB A-Weighted
CMRR:>80dB
FREQUENCY RESPONSE:±0.5dB 10Hz to 40kHz
Line Outputs (DAC)
LINEUP:12dBu = 0dBFS
THD+N @ -1dBFS:0.0006%
DYNAMIC RANGE:125.5dB A-Weighted
CROSSTALK:>120dB
FREQUENCY RESPONSE:±0.1dB 10Hz to 40kHz
1/4” TRS JACK:Tip (Hot), Ring (Cold) & Sleeve (Shield)
Headphone Outputs
LINEUP:18dBu = 0dBFS
THD+N @ -1dBFS:0.0009%
DYNAMIC RANGE:125.5dB A-Weighted
CROSSTALK:>116dB
FREQUENCY RESPONSE:±0.25dB 10Hz to 40kHz
MAXIMUM LEVEL @ 30R:2.59V Peak, 1.827V RMS, 223mW
MAXIMUM LEVEL @ 62R:4.18V Peak, 2.95V RMS, 280mW
MAXIMUM LEVEL @ 600R:7.72V Peak, 5.46V RMS, 100mW
1/4” TRS JACK:Tip (Left), Ring (Right) & Sleeve (Shield)
USB-C High Speed
BUS POWER:
MIN REQUIREMENT:0.9A @ 5V >=USB 3.0 Port
MAX REQUIREMENT:1.5A @ 5V USB-C: Provides higher headphone outputs levels
No. of INPUT CHANNELS:10
No. of OUTPUT CHANNELS:6
DSP MIXER LATENCY ROUND TRIP (in-to-out):44.1kHz 0.65mS
DSP MIXER LATENCY ROUND TRIP (in-to-out):48.0kHz 0.6mS
DSP MIXER LATENCY ROUND TRIP (in-to-out):88.2kHz 0.33mS
DSP MIXER LATENCY ROUND TRIP (in-to-out):96.0kHz 0.31mS
