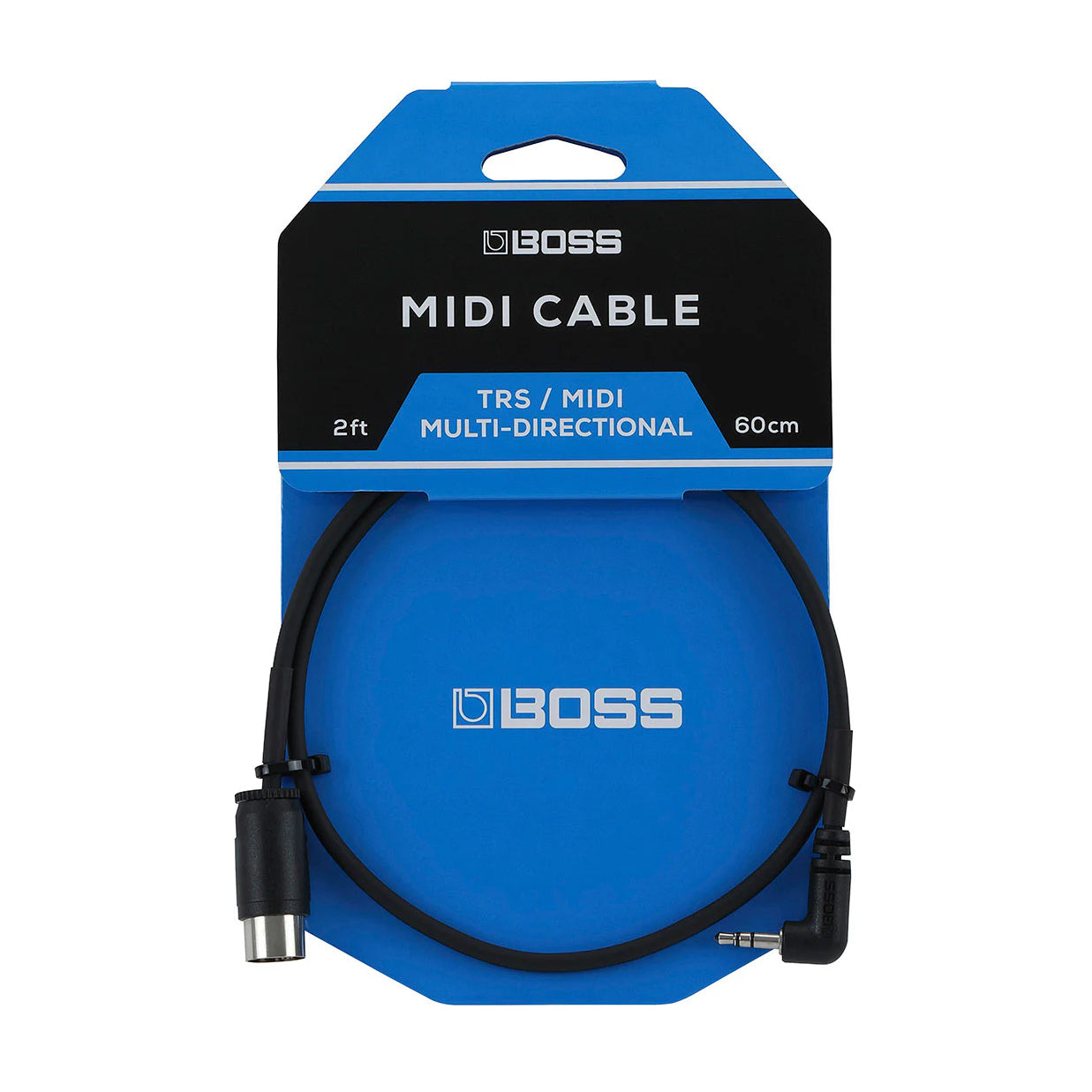

BOSS BMIDI-2-35, MIDI cable with right-angle 3.5 mm TRS and 5-pin DIN* connectors

The BMIDI-1-35 and BMIDI-2-35 cables provide premium connectivity for the expanding lineup of BOSS pedals with space-saving 3.5 mm TRS MIDI jacks. These rugged and reliable cables feature 3.5 mm TRS and 5-pin DIN connectors, allowing you to connect products such as the BOSS 200 series, EV-1-WL, and others to gear equipped with traditional MIDI jacks, from pedals, loop switchers, and multi-effects units to keyboards and MIDI interfaces for computers. The low-profile plugs fit into tight spaces on your pedalboard, with a slim right-angle plug housing on the TRS side and three-way cable adjustment on the 5-pin DIN connector.

• MIDI cable with right-angle 3.5 mm TRS and 5-pin DIN* connectors
• Compatible with all BOSS products with 3.5 mm TRS MIDI jacks
• Designed to fit in tight spaces with a slim right-angle housing on the TRS plug and three-way cable exit direction on the 5-pin connector
• Rugged and robust design
• Oxygen-free copper wire and shielding
• Flexible and durable PVC outer jacket
• Available in two lengths: 1 ft./30 cm (BMIDI-1-35) and 2 ft./60 cm (BMIDI-2-35)
• For applications where you need a longer cable, check out the 5 ft./1.5 m BMIDI-5-35

  *The BMIDI-1-35 and BMIDI-2-35 are three-conductor cables. Pins 1 and 3 on the 5-pin DIN are unconnected.

• Specs:

Cable Length[BMIDI-1-35] 30 cm, 12 inches
[BMIDI-2-35] 60 cm, 24 inchesPlugTRS: 3.5 mm Stereo Mini Plug Angled (Nickel Plated)
MIDI: DIN 5 - pin (Nickel Plated)Plug dimensions(TRS)Width29.7 mm
1-3/16 inchesDepth14 mm
9/16 inchesHeight9 mm
3/8 inchesPlug dimensions(MIDI)Width16 mm
11/16 inchesDepth16 mm
11/16 inchesHeight36.6 mm
1-1/2 inches
