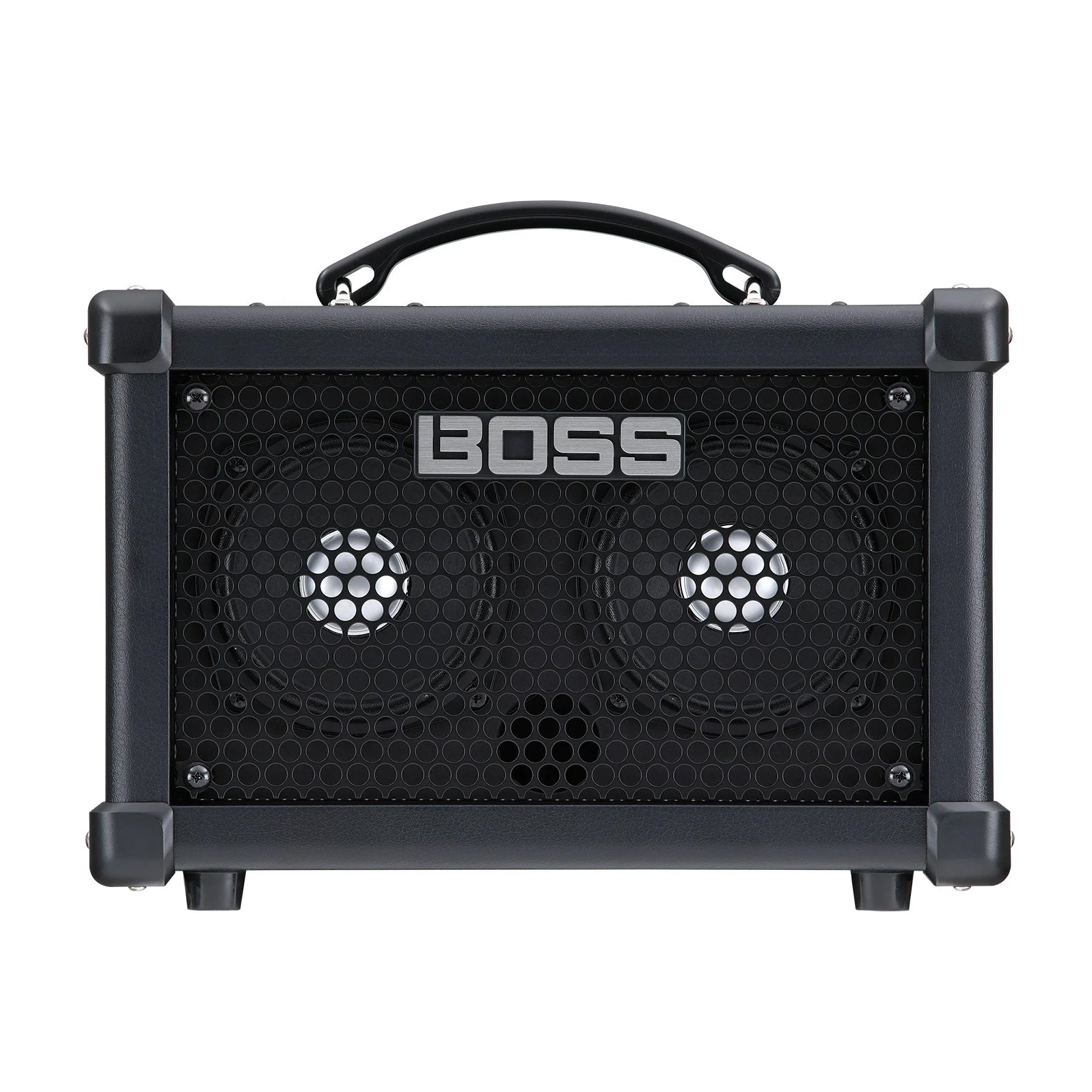

Boss DUAL CUBE BASS LX Bass Amplifier DUAL CUBE BASS LX

For over four decades, CUBE amplifiers have brought exceptional value to musicians everywhere, offering great sound and versatile features in portable, go-everywhere designs. The DUAL CUBE BASS LX is the most advanced compact CUBE bass amp yet, filled with evolved BOSS technologies for the ultimate home practice experience. This thunder box punches well above its size, delivering rich, full sound and a host of fun rhythm patterns to groove with. A generous array of connectivity options are also included, extending its range to performing, recording, and many other applications.

• Ultra-portable stereo bass amplifier with professional sound and features
• Two custom-designed 5-inch speakers
• 10-watt stereo power amp (5 watts x 2)
• Five preamp types: Super Flat, Flat, Vintage, Modern, and Rock
• Compressor/drive control tuned for bass
• Chorus, flanger, touch wah, delay, and reverb effects
• Three-band equalizer
• Store amp and effects settings in 15 memories (3 memories for each amp type)
• Powered via AC adaptor (included) or eight AA batteries
• Onboard rhythms with 27 different patterns (nine types and three variations each)
• Edit sounds, access additional rhythm variations, and more with the dedicated DUAL CUBE BASS LX Editor
• Stereo XLR balanced line output
• Phones/Rec jack with support for an inline headphones microphone
• USB audio for direct recording and livestreaming
• Control jack for up to two external footswitches
• i-CUBE Link/Aux In jack for audio playback
• Selectable Loopback function for USB and i-CUBE Link/Aux In
• Onboard looper (requires optional footswitch)
• Connector for optional Bluetooth® Audio MIDI Dual Adaptor (BT-DUAL)

Download “DUAL CUBE BASS LX Editor” for iOS
Download “DUAL CUBE BASS LX Editor” for Android
Download “DUAL CUBE BASS LX Editor” for Windows/macOS

Specs:

Rated Power Output10 W (5 W+5 W)Nominal Input LevelINPUT: -10 dBu (1 M ohm)
i-CUBE LINK/AUX IN: -20 dBu (15 k ohm)Nominal Output LevelLINE OUT L, R: -10 dBuSpeakers12 cm (5 inches) x 2ControlsPOWER switch
COMP/DRIVE knob
DRIVE button
AMP TYPE knob (SUPER FLAT, FLAT, VINTAGE, MODERN, ROCK)
MEMORY button
GAIN knob
VOLUME knob
BASS knob
MIDDLE knob
TREBLE knob
EFFECTS knob (CHORUS, FLANGER, T-WAH)
DELAY/REVERB knob
START/STOP button
PATTERN knob (METRONOME, JAZZ, ROCK, BLUES, R&B, FUNK, METAL, LATIN, COUNTRY)
VARIATION button
TAP TEMPO button
VOLUME knob (RHYTHM GUIDE)
MIC VOL knob
MASTER knob
LOOPBACK switch (i-CUBE LINK/AUX IN)
LOOPBACK switch (USB)IndicatorsPOWER
DRIVE
MEMORY
START/STOP
VARIATION
REC
PLAY

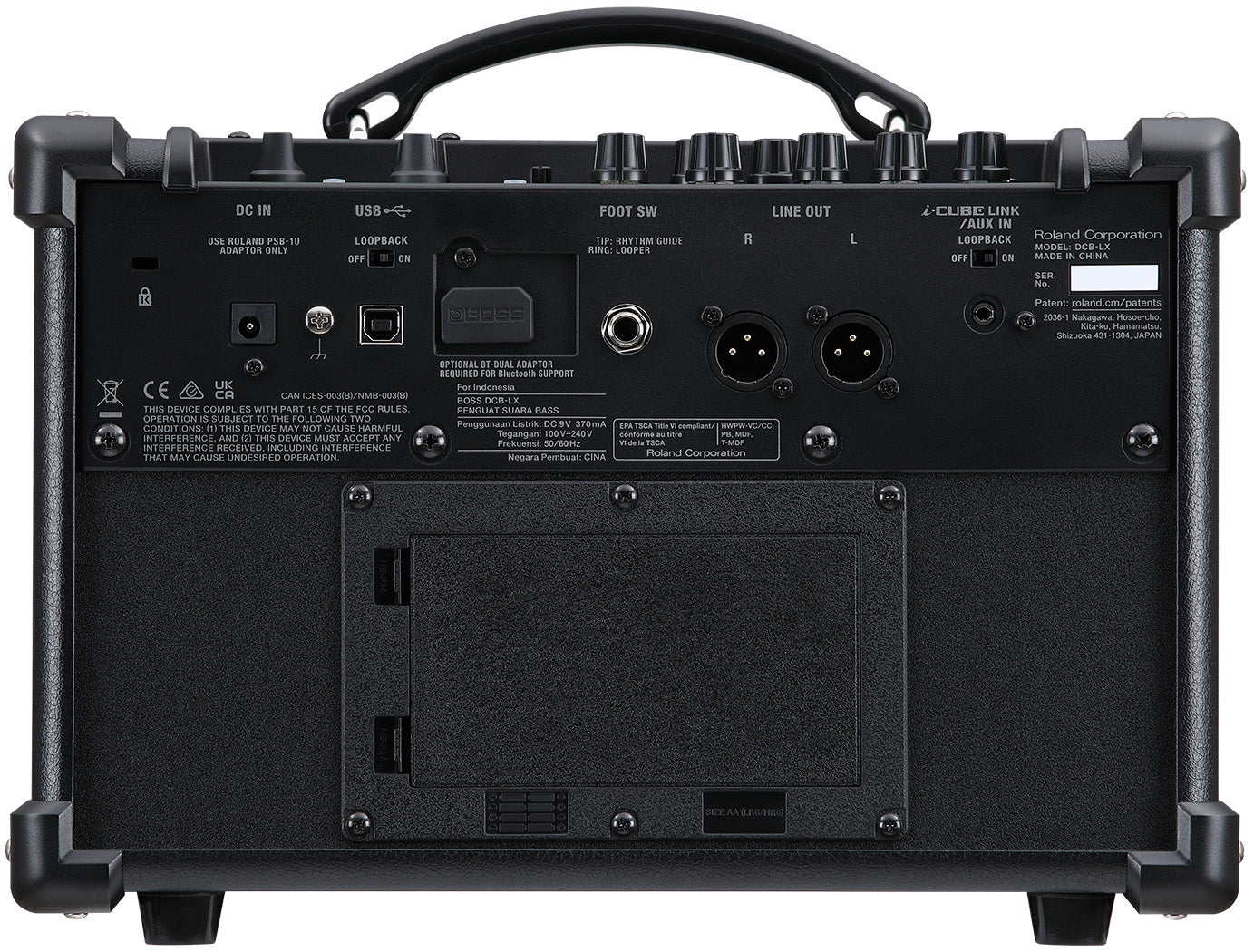

DUBConnectorsINPUT jack: 1/4-inch phone type
PHONES/REC OUT jack: Stereo Miniature phone type (Stereo, CTIA)
i-CUBE LINK/AUX IN jack: Stereo Miniature phone type (Stereo, CTIA)
LINE OUT L, R connectors: XLR type
FOOT SW jack: 1/4-inch TRS phone type
Bluetooth ADAPTOR connector: Dedicated connector
USB port: USB B
DC IN jackPower SupplyAC adaptor (DC 9 V)
Alkaline battery (AA, LR6) x 8
Rechargeable Ni-MH battery (AA, HR6) x 8Current Draw370 mAExpected battery life under continuous useAlkaline battery: Approximately 8 hours
Rechargeable Ni-MH battery: Approximately 10 hours (*1)

*1 When using batteries having a capacity of 2,500 mAh.
* These can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use.AccessoriesOwner's Manual
Leaflet USING THE UNIT SAFELY
AC adaptor
Power cord
Mini cable (4-pole miniature phone type)Options (sold separately)Footswitch: FS-5U, FS-6, FS-7
Bluetooth® Audio MIDI Dual Adaptor (MODEL BT-DUAL)
Wireless MIDI Expression Pedal: EV-1-WLSize and WeightWidth341 mm
13-7/16 inchesDepth205 mm
8-1/8 inchesHeight261 mm
10-5/16 inchesWeight (excluding AC adaptor)4.4 kg
9 lbs 12 oz
