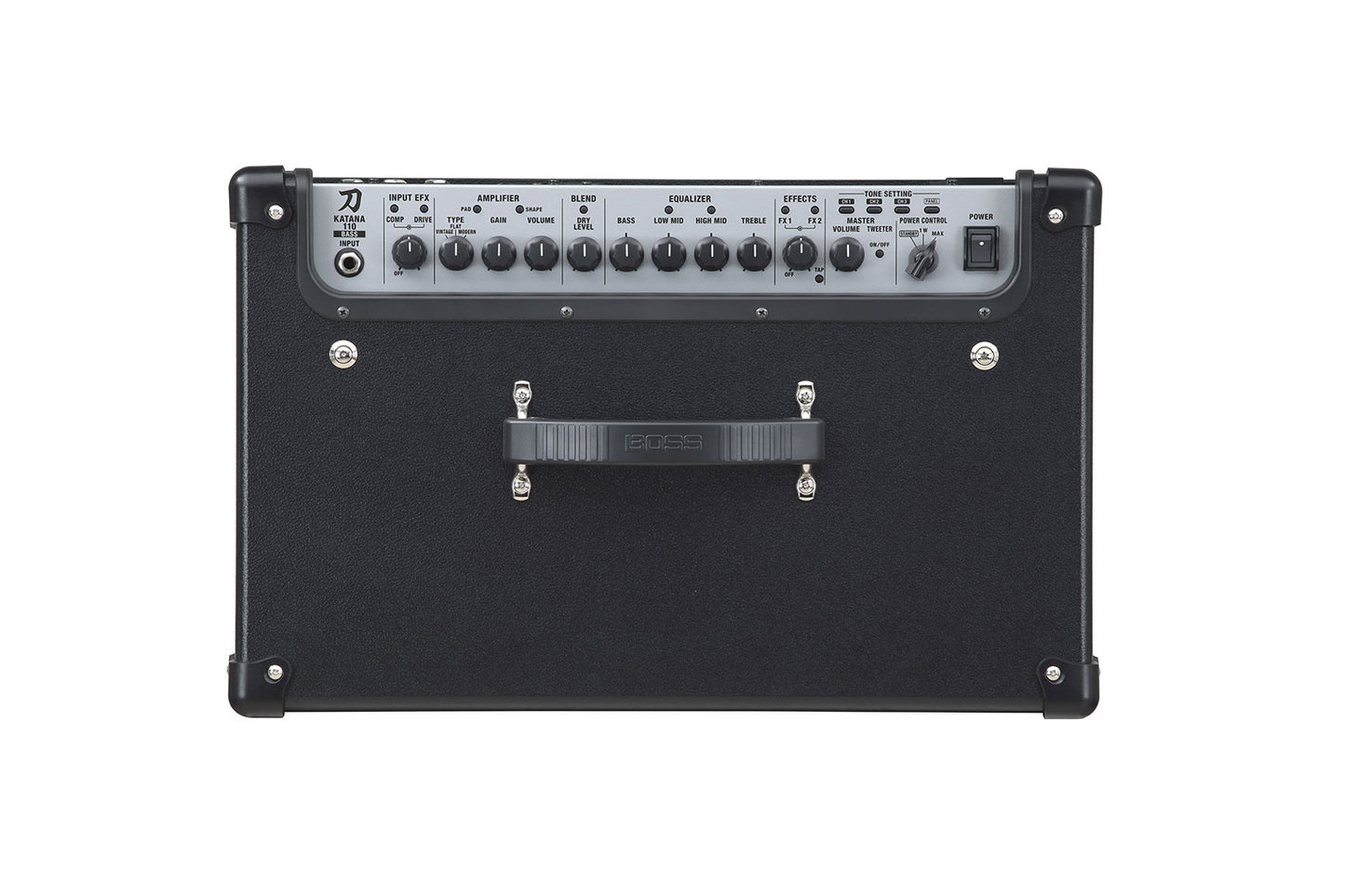

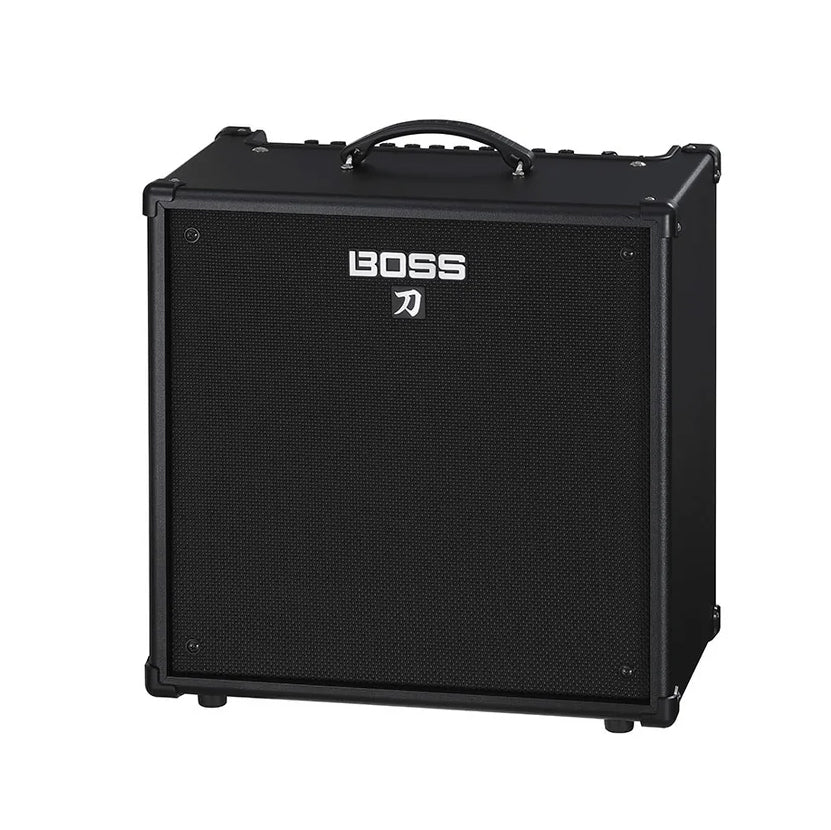

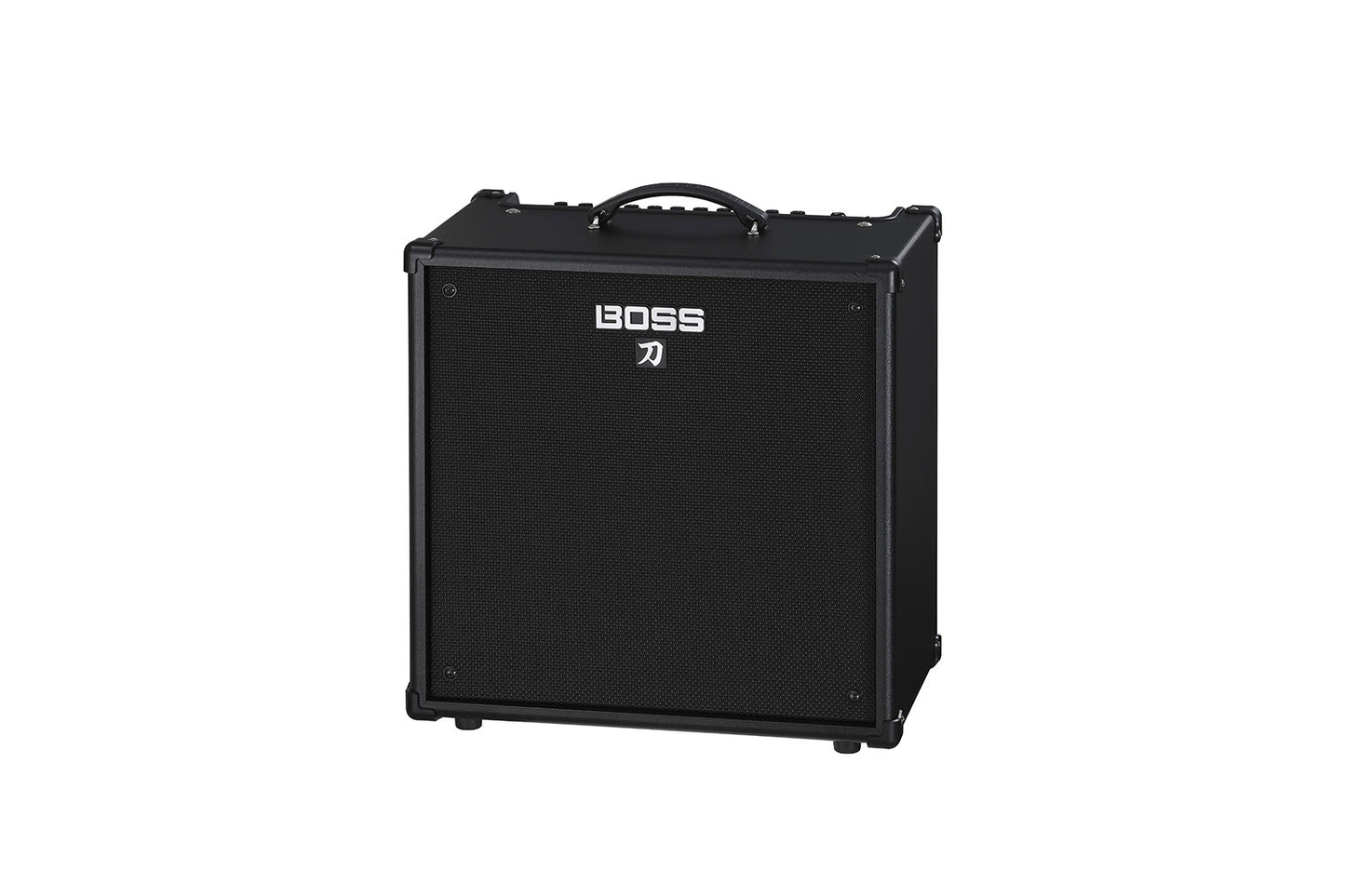

Boss KATANA-110 BASS AMP

Crafted with the breakthrough design philosophy behind the acclaimed Katana guitar amp series, the Katana-110 Bass delivers premium sound and advanced features perfectly tuned for the needs of serious bassists. Three unique amp characters and onboard BOSS effects provide a wide range of tones, backed by a stage-ready, 110-watt class AB power amp, custom 10-inch woofer, and tweeter with on/off switch. And with comprehensive EQ, flexible connectivity, and more, the Katana-110 Bass is ready to take on any playing situation, from stage to studio to everyday practice at home.

• Versatile combo bass amp with stage-ready sound and advanced features
• 110-watt class AB power amp delivers big, punchy tone
• Rock-solid combo cabinet with custom 10-inch woofer and high-frequency tweeter with on/off switch
• Three selectable amp voicings cover a wide range of styles
• Shape switch with three tone characters: mid scoop, bright, and extended range
• Four independent effect sections: compressor, drive, and FX1/FX2 with a vast range of selectable effects
• Comprehensive four-band EQ with selectable low and high-mid frequency controls
• Studio-inspired Blend section enables you to mix in the dry sound for enhanced fatness and clarity
• Six memories for storing and recalling favorite sound setups
• Power Control realizes cranked-amp volume in any playing situation
• Adjust preamp and effect settings, organize sounds, and more with the dedicated BOSS Tone Studio editor for macOS and Windows
• Download and share Livesets at BOSS Tone Exchange
• USB and phones/recording outputs with mic'd cabinet emulation
• Balanced XLR direct output with selectable direct, pre, or post signal
• Optional GA-FC footswitch for deep performance control
• Edit sounds from a smartphone with the optional BOSS Bluetooth® Audio MIDI Dual Adaptor

For optimal performance, stay up to date with the current Katana Bass system software and BOSS Tone Studio

Download “BTS for KATANA BASS” for iOS
Download “BTS for KATANA BASS” for Android
Download “BOSS TONE STUDIO for KATANA BASS” for Windows/macOS

Specs:

Output Power60 W continuous (RMS)
110 W peakNominal Input LevelINPUT: -10 dBu (1 M ohm)
POWER AMP IN: -10 dBu (20 k ohms)
AUX IN: -10 dBu (20 k ohms)
RETURN IN: -10 dBu (100 k ohm)SpeakerWOOFER: 25 cm (10 inches) x 1
TWEETER: x 1ControlsPOWER switch
MASTER VOLUME knob
POWER CONTROL switch (STANDBY, 1 W, MAX)
TWEETER button

[INPUT EFX]
COMP button
DRIVE button
COMP knob
DRIVE knob

[AMPLIFIER]
PAD button
SHAPE button
TYPE knob (VINTAGE, FLAT, MODERN)
GAIN knob
VOLUME knob

[BLEND]
BLEND button
DRY LEVEL knob

[EQUALIZER]
LOW MID button
HIGH MID button
BASS knob
LOW MID knob
HIGH MID knob
TREBLE knob

[EFFECTS]
FX1 button
FX2 button
TAP button
FX1 knob
FX2 knob

[TONE SETTING]
CH1 button
CH2 button
CH3 button
PANEL button

[BALANCED OUT]
GND LIFT switch (OFF, ON)
SELECT (POST, PRE, DIRECT)IndicatorsCOMP
DRIVE
PAD
SHAPE
BLEND
LOW MID
HIGH MID
FX1
FX2
TAP
CH1
CH2
CH3
PANEL

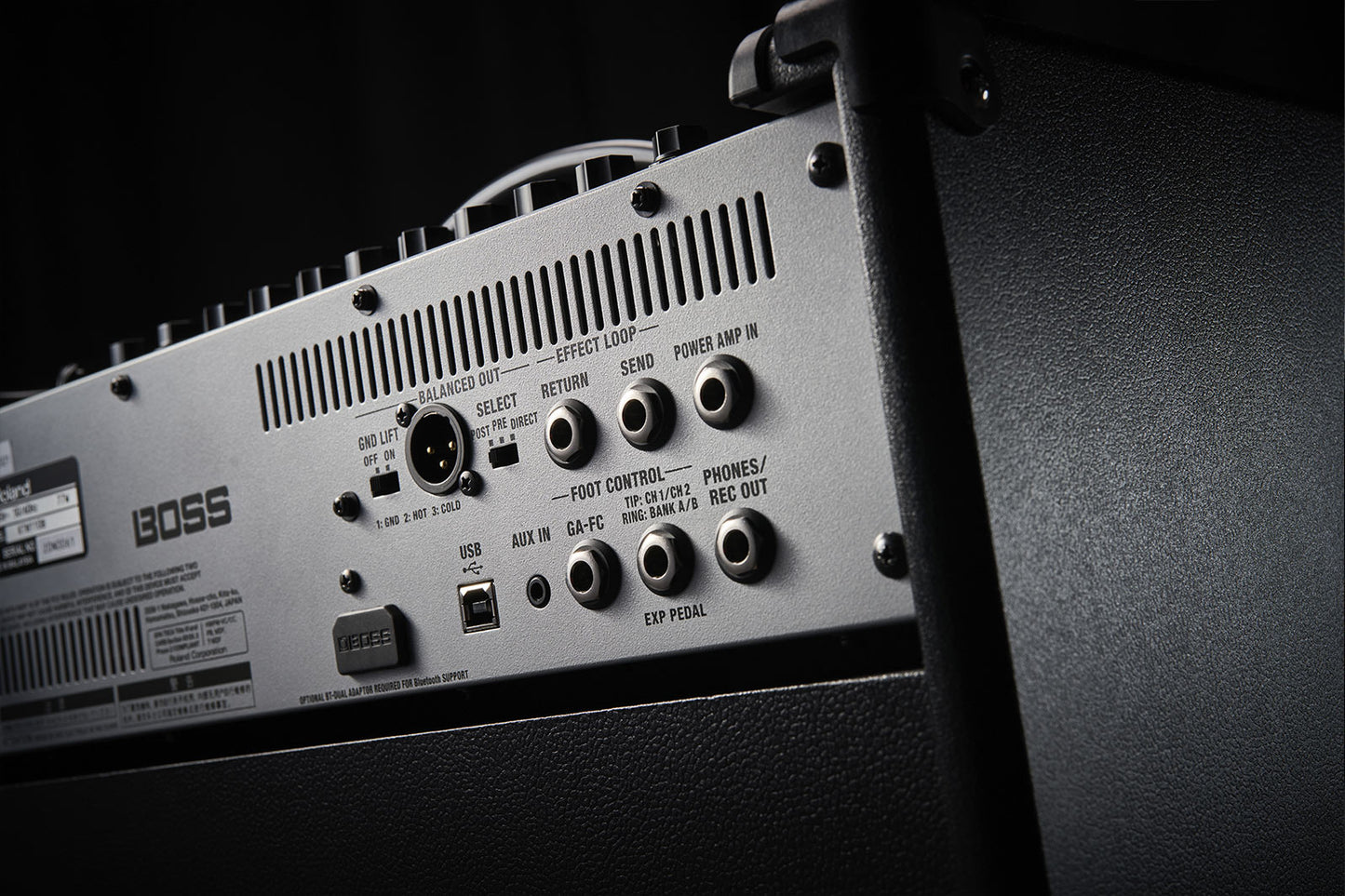

TWEETERConnectorsINPUT jack: 1/4-inch phone type
POWER AMP IN jack: 1/4-inch phone type
BALANCED OUT jack: 1/4-inch phone type
SEND jack: 1/4-inch phone type
RETURN jack: 1/4-inch phone type
REC OUT/PHONES jack: Stereo 1/4-inch phone type
EXP PEDAL/CTL CH1/CH2 jack: 1/4-inch TRS phone type
GA-FC jack: 1/4-inch TRS phone type
AUX IN jack: Stereo miniature phone type
USB port: USB B type
BLUETOOTH ADAPTOR SLOT: BluetoothⓇ Audio MIDI Dual Adaptor
AC IN jackPower Consumption77 WAccessories/Owner's manual
Power cord
GA-FC stickerOptions (sold separately)Footswitch: BOSS FS-5L, BOSS FS-6, BOSS FS-7
Expression pedal: Roland EV-5, BOSS EV-30, BOSS FV-500L, BOSS FV-500H
GA FOOT CONTROLLER (GA-FC)
BluetoothⓇ Audio MIDI Dual Adaptor (Model BT-DUAL)Size and WeightWidth470 mm
18-9/16 inchesDepth300 mm
11-13/16 inchesHeight500 mm
19-11/16 inchesWeight16.8 kg
37 lbs 0.6 oz
