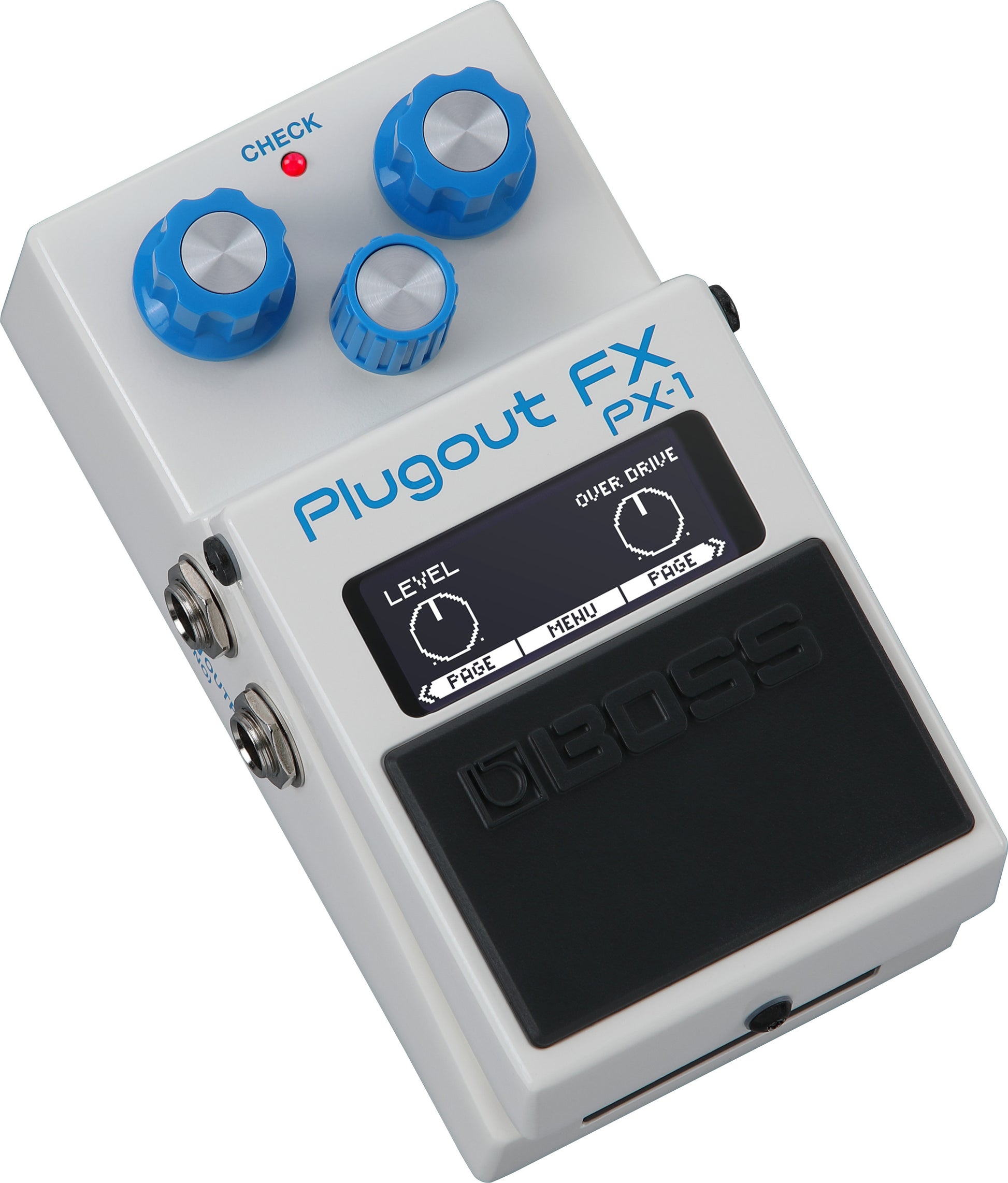

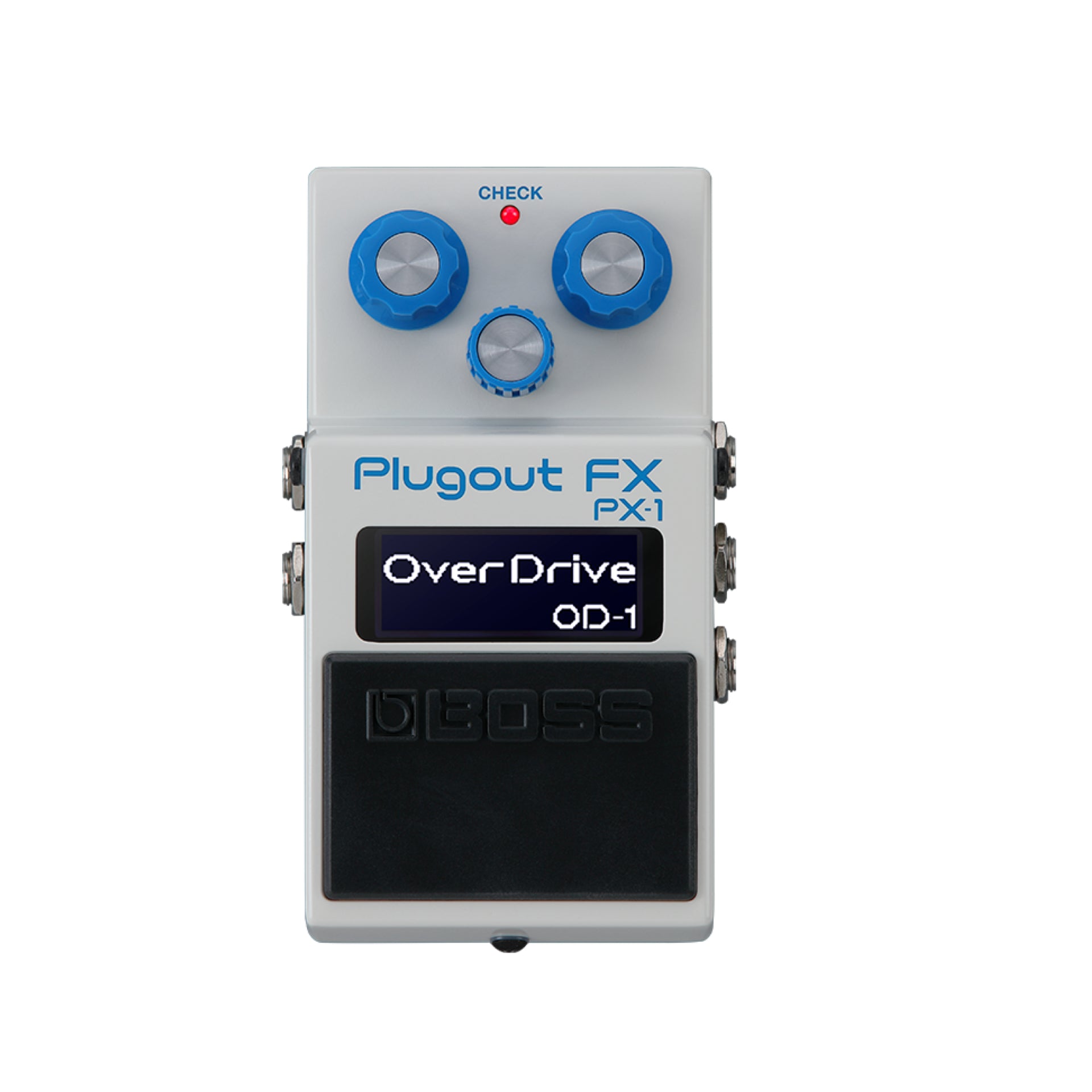

Boss PX-1 Plugout FX Pedal

The PX-1 Plugout FX is an innovative hardware platform that captures the timeless BOSS compact pedal experience in one versatile pedal. This convertible stomp holds multiple authentic effect recreations from the historic BOSS lineup, providing endless fuel for every creative journey. With the PX-1 in your setup, exploring the vast and influential world of BOSS compact pedals has never been easier.

·         Timeless BOSS compact pedals in an innovative hardware platform

·         Instantly reconfigure the pedal to use one effect from an onboard library of up to 16 types

·         Comes with 16 effects: OD-1, SP-1, PH-1, SG-1, CS-1, TW-1, SD-1, DS-1, CE-2, BF-2, PN-2, OC-2, PS-2, VB-2, DD-2, and DF-2

·         Additional effects available over time with Model Pass purchases in the BOSS Effect Loader app

·         Authentic tone and response, realized with powerful DSP dedicated to one effect at a time

·         Stereo input and output

·         Support for external control with footswitches or an expression pedal

·         Tap tempo support and TRS MIDI input for MIDI clock sync

·         Bluetooth® and USB-C® connectivity for loading effect models and more

·         Runs on included AC adaptor or USB bus power

·         BOSS five-year warranty

Specs:

-Sampling Frequency
48 kHz

-AD Conversion
24 bits + AF method
AF method (Adaptive Focus method) This is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters.

-DA Conversion
32 bits

- Nominal Input Level
INPUT A (MONO), INPUT B: -20 dBu

- Maximum Input Level
INPUT A (MONO), INPUT B: +7 dBu

- Input Impedance
INPUT A (MONO), INPUT B: 1 MΩ

- Nominal Output Level
OUTPUT A (MONO), OUTPUT B: -20 dBu

- Maximum Output Level
OUTPUT A (MONO), OUTPUT B: +7 dBu

- Output Impedance
OUTPUT A (MONO), OUTPUT B: 1 kΩ

- Recommended Load Impedance
OUTPUT A (MONO), OUTPUT B: 10 kΩ or greater

- Bypass
Buffered bypass

-Controls
LEFT knob
CENTER knob
RIGHT knob
Pedal switch

-Indicator
CHECK indicator

-Display
Graphic LCD 128 x 48 dots

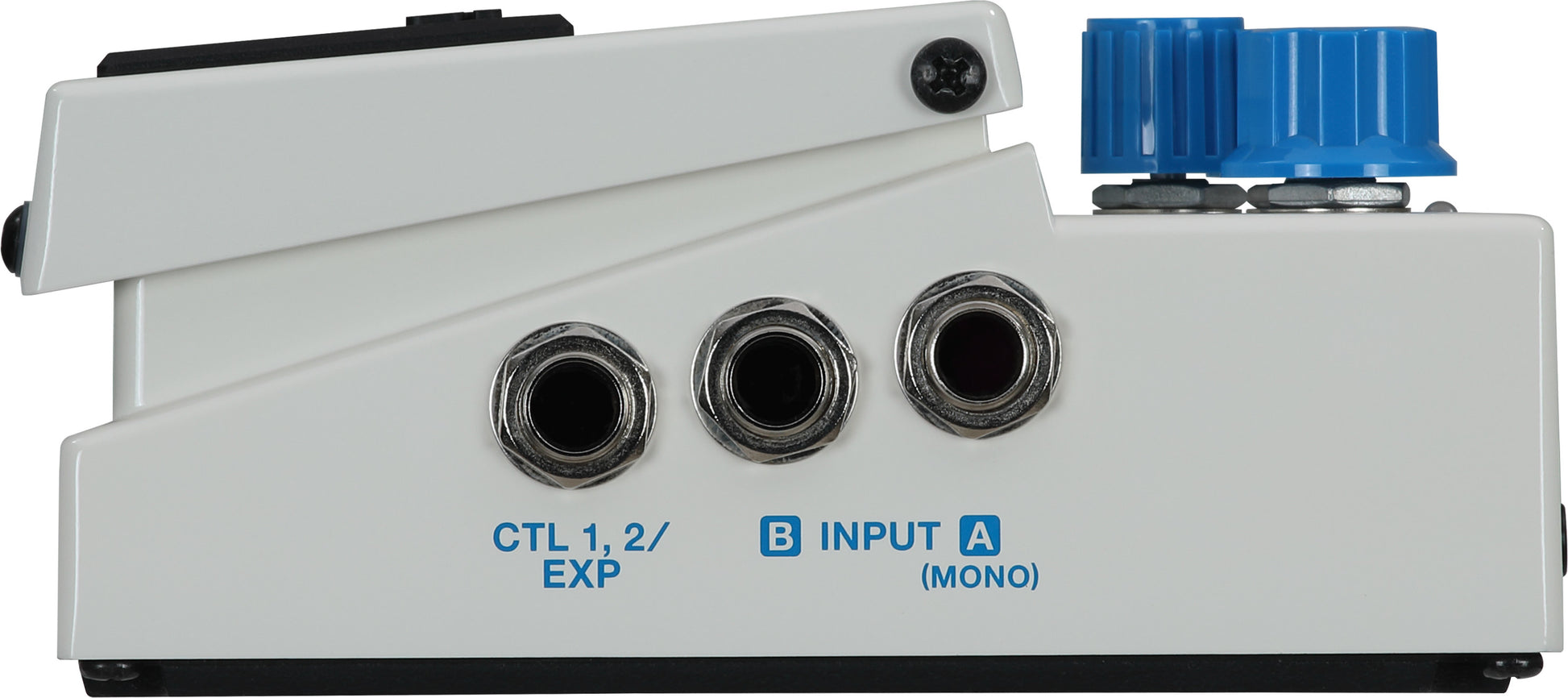

- Connectors
INPUT A (MONO) jack, INPUT B jack, OUTPUT A (MONO) jack, OUTPUT B jack: 1/4-inch phone type
CTL1,2/EXP jack: 1/4-inch TRS phone type
DC IN jack
MIDI IN jack: Stereo miniature phone type
USB COMPUTER port: USB Type-C(R)

-Bluetooth
Profile Support: GATT (MIDI over Bluetooth Low Energy)

-Power Supply
AC adaptor
Supplied from the USB port

-Current Draw
260 mA (AC adaptor)
420 mA (USB)

-Dimensions
73 (W) x 125 (D) x 56 (H) mm
2-7/8 (W) x 4-15/16 (D) x 2-1/4 (H) inches

-Weight (excluding AC adaptor)
400 g
15 oz

- Accessories
AC adaptor
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Roland Cloud Activation Card

- Options (sold separately)
Footswitch: FS-5U
Dual footswitch: FS-6, FS-7
Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5
TRS/MIDI connecting cable: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535
