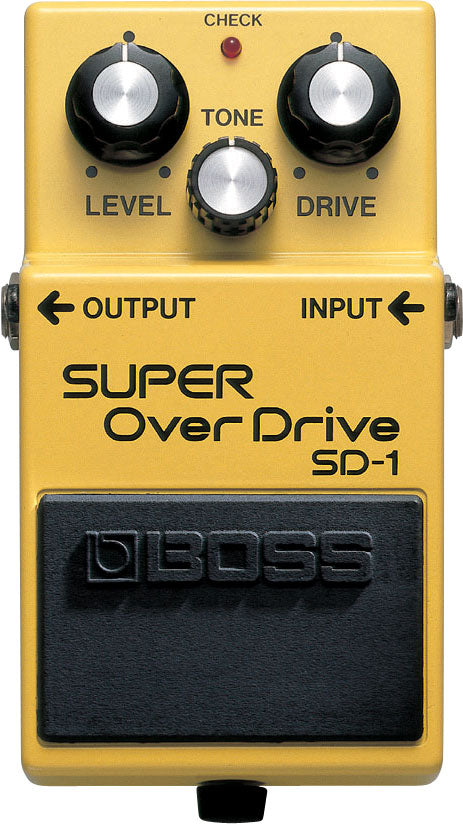

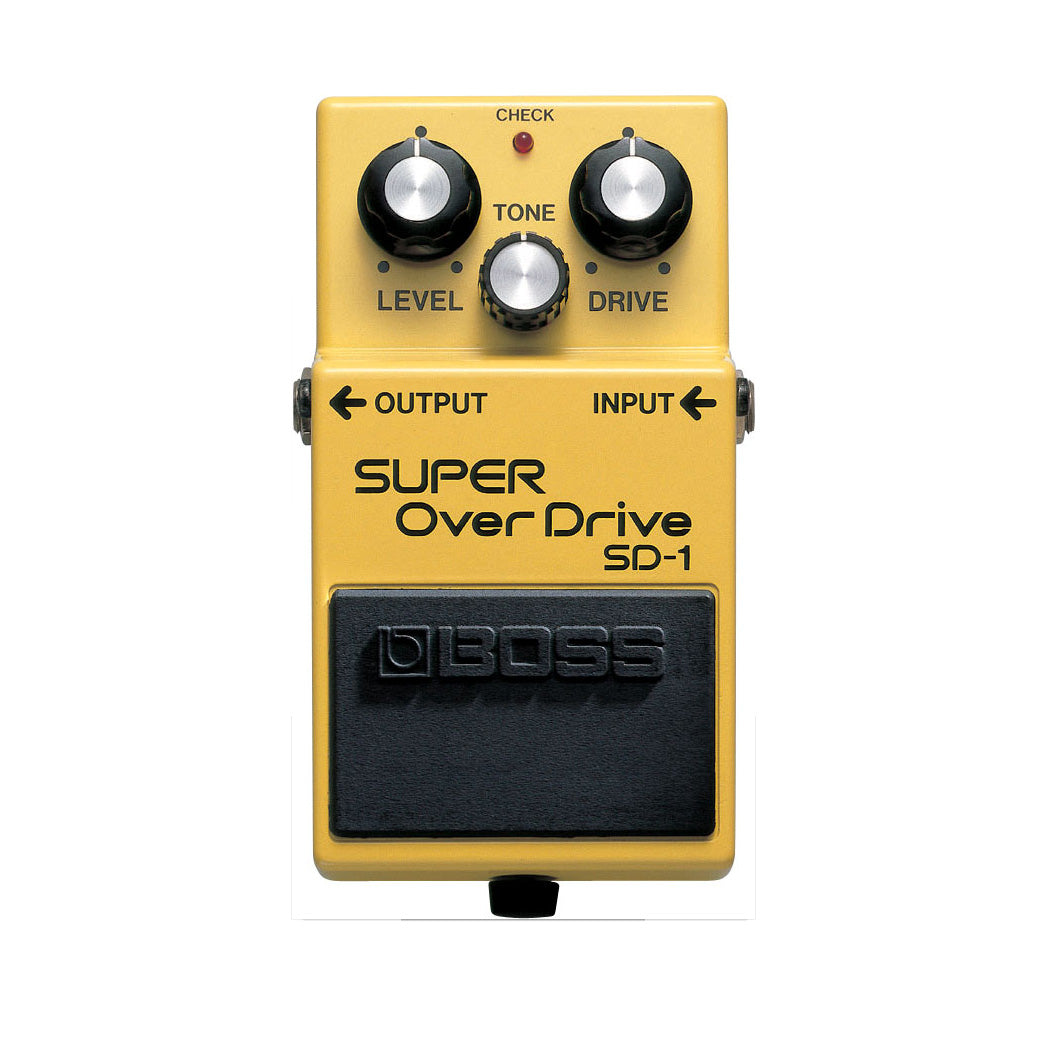

Boss SD-1 Overdrive pedal
Boss SD-1 Overdrive pedal
FREE SHIPPING OVER $40 PURCHASES! exceptions -- Local Pickup Available
Since its release in 1981, the workhorse SD-1 Super Overdrive has been the core gain pedal for generations of players across every musical genre. Based around the revolutionary asymmetrical clipping circuit from the OD-1 Overdrive—one of the three original BOSS compact pedals from 1977—the SD-1 delivers rich, smooth, and highly musical overdrive tones that continue to inspire guitarists everywhere.
- Genre-defining BOSS overdrive sound
- Unique asymmetrical clipping circuit produces tube-like overdrive characteristics
- Mild-to-moderate drive tones with focused midrange and tight low end
- Ideal for use with clean and slightly driven amps
- Also works great for bringing tightness and definition to high-gain amp tones
- Stacks well with boost, overdrive, and distortion pedals
- BOSS five-year warranty
The Clipping Circuit That Defined “Overdrive”
In 1977, BOSS created an entirely new stompbox category with the OD-1, bringing natural overdrive in pedal form to guitarists for the very first time. Producing a signal rich in even-order harmonics, its unique asymmetric clipping circuit replicated the pleasing sound and feel of a driven tube amp—but at controllable volume levels. Four years later, this breakthrough design evolved into the more versatile SD-1, which added an active tone control for shaping the treble response and subtle enhancements for
Specs:
Nominal Input Level-20 dBuInput Impedance1 M ohmNominal Output Level-20 dBuOutput Impedance1 k ohmRecommended Load Impedance10 k ohms or greaterBypassBuffered bypassControlsDRIVE knob
TONE knob
LEVEL knob
Pedal switchIndicatorCHECK indicator (Used for indication of check battery)ConnectorsINPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DC IN jackPower SupplyCarbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately)Current Draw10 mAExpected battery life under continuous useCarbon: Approx. 60 hours
Alkaline: Approx. 90 hours
*These figures will vary depending on the actual conditions of use.AccessoriesLeaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Carbon-zinc battery (9 V, 6F22)Options (sold separately)AC adaptor: PSA seriesSize and WeightWidth73 mm
2-7/8 inchesDepth129 mm
5-1/8 inchesHeight59 mm
2-3/8 inchesWeight (including battery)360 g
13 oz
