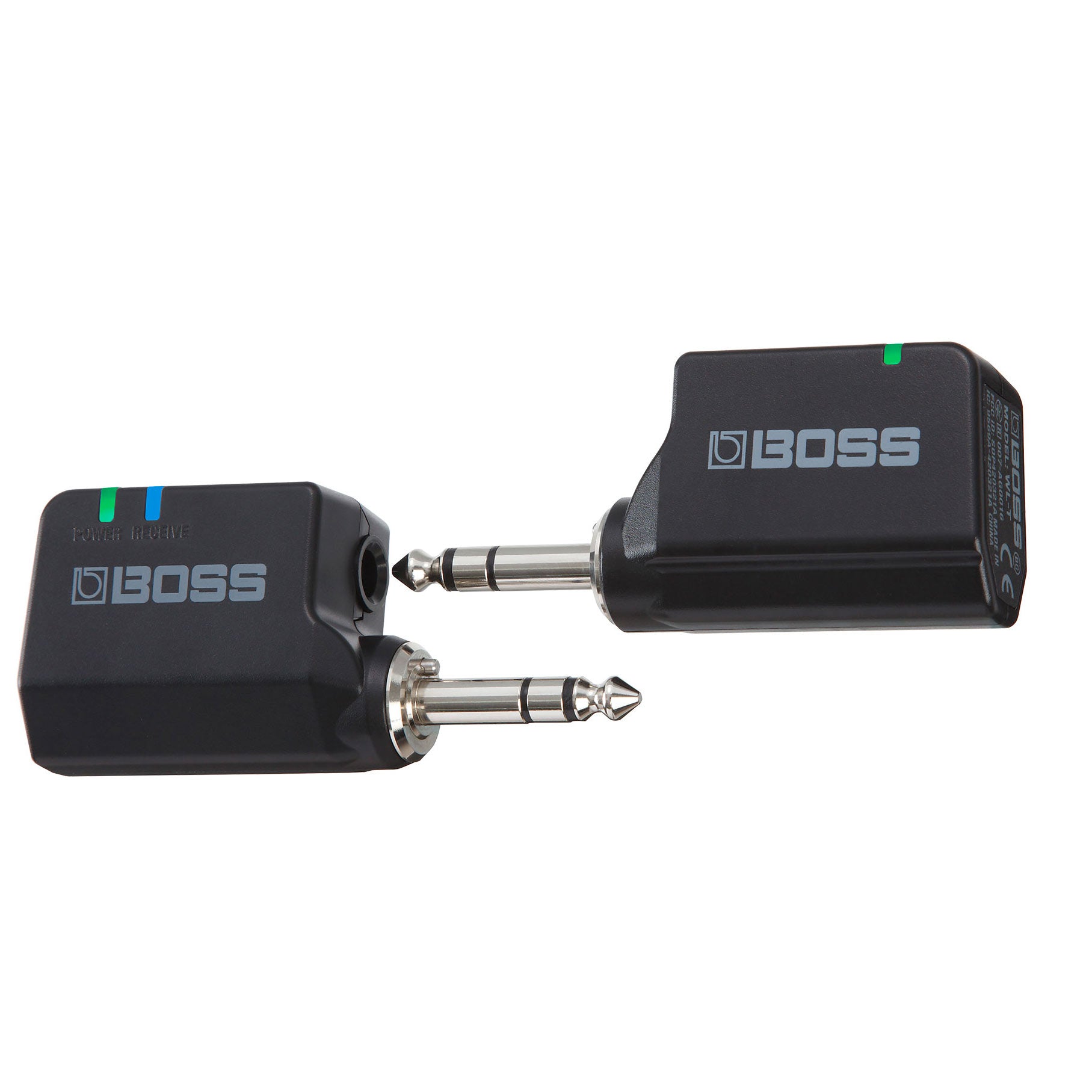

Boss WL-20 Instruments Wireless System
Boss WL-20 Instruments Wireless System
FREE SHIPPING OVER $40 PURCHASES! exceptions -- Local Pickup Available
--We are now offering free local delivery on purchases over $100!-- If you are within 5 miles from one of our locations, just select ‘Local Delivery’ at checkout after you enter your address
Couldn't load pickup availability
Have you always dreamed about going wireless with your instrument, but were put off by the complicated setup, tone loss, and bulky adds-ons? If so, the WL-20 series is for you! Driven by new lightning-fast BOSS tech, these ultra-compact music tools deliver premium sound and plug-and-play operation that completely eliminates all the hassles normally associated with wireless systems.
Once you experience the easy wireless independence provided by the WL-20 series, you’ll never go back to using a standard cable again! With no worries about cable management, you’re able to move about freely while playing at home, jamming with friends, and performing on stage. During sound check at a gig, you can listen to your tone out front and dial in the best sound for your audience. And with the ability to roam and interact with other musicians, your live shows will be more dynamic and entertaining than ever. *Compatible guitars
- Plug-and-play wireless systems for guitar, bass, and other electronic instruments
- No complicated setup required—simply dock the transmitter and receiver together for about 10 seconds to set the optimum wireless connection
- Newly developed BOSS technology delivers premium audio performance with rock-solid stability, ultra-low latency (2.3 ms), and 50-foot/15-meter range (line-of-sight propagation)*
- Built-in rechargeable batteries provide up to 12 hours of continuous playing time**
- Simple charging with a standard USB adaptor (5 V/500 mA or greater)
- Cable tone simulation reproduces the natural capacitive effect of a 10-foot/3-meter guitar cable (WL-20 model only)
- Spare WL-T Transmitter available separately
* The transmission range may vary due to local conditions.
** A full charge provides 12 hours of time for the transmitter and 7 hours for the receiver.
Specs:
Wireless FormatBOSS proprietary digital audio formatWireless carrier frequency2.4 GHzCompatible Channels14
(May vary due to local conditions)Transmission Range50 feet line-of-sight
(May vary due to local conditions)Latency2.3 msDynamic Range110 dB or greaterFrequency Response20 Hz--20 kHzNominal Output Level-10 dBuOutput Impedance1 k ohmRecommended Load Impedance10 k ohms or greaterIndicatorsPOWER
RECEIVEConnectorsOutput plug: 1/4-inch TRS phone type
TRANSMITTER jack: 1/4-inch TRS phone type
DC IN 5 V port: USB Micro-B typePower SupplyRechargeable lithium-ion battery
Supplied from the DC IN 5 V portCurrent DrawDuring wireless operation: 60 mA
While charging: 500mABattery charging timeCharging only the receiver: Approximately 3 hours
Charging simultaneously with the transmitter: Approximately 4 hoursExpected battery life under continuous useApproximately 7 hours
* These figures will vary depending on the actual conditions of use.AccessoriesOwner's Manual
Leaflet USING THE UNIT SAFELY
Transmitter
Micro USB cable for charging (*1)
*1: Use a standard USB AC adaptor (5 V/over 0.5 A) for charging.Size and Weight(RECEIVER)Width87 mm
3-7/16 inchesDepth25 mm
1 inchesHeight38 mm
1-1/2 inchesWeight60 g
3 ozSpecifications (TRANSMITTER (WL-T))Nominal Input Level-10 dBu (1 M ohm)IndicatorBATTERYConnectorsInput plug: 1/4-inch TRS phone type
DC IN 5 V port: USB Micro-B typePower SupplyRechargeable lithium-ion battery
Supplied from the DC IN 5 V portCurrent Draw350mABattery charging timeApproximately 3 hoursExpected battery life under continuous useApproximately 12 hours
* These figures will vary depending on the actual conditions of use.Size and Weight (TRANSMITTER (WL-T))Width87 mm
3-7/16 inchesDepth22 mm
7/8 inchesHeight36 mm
1-7/16 inchesWeight43 g
2 o
