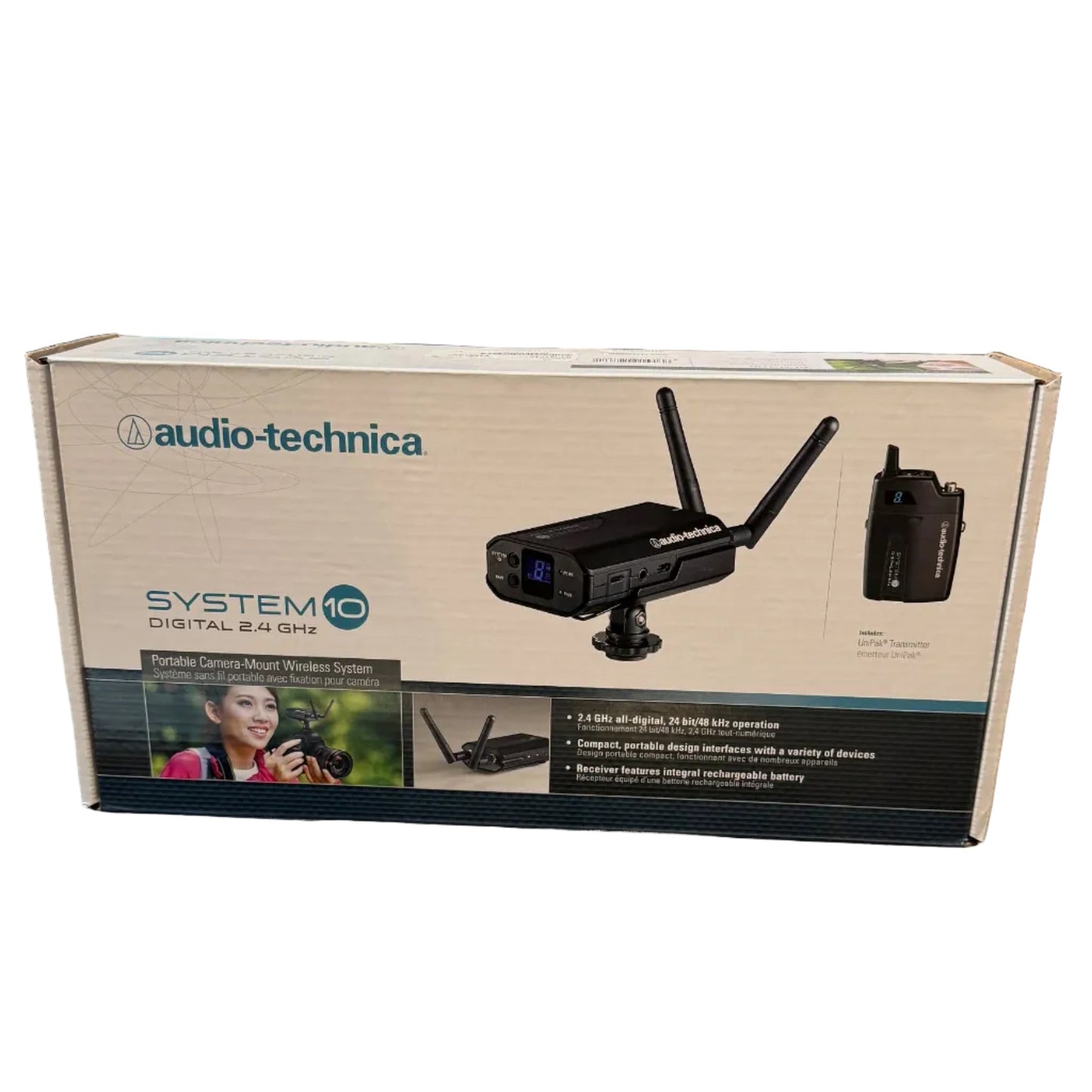

Audio Technica ATW-1701 System 10 Camera-Mount Wireless Body Pack System (Open Box)

Audio Technica ATW-1701 System 10 Camera-Mount Wireless Body Pack System (Open Box)

$379.95 USD
$439.95 USD $379.95 USD
Sale Sold out
Shipping calculated at checkout.

FREE SHIPPING OVER $40 PURCHASES! exceptions -- Local Pickup Available

--We are now offering free local delivery on purchases over $100!-- If you are within 5 miles from one of our locations, just select ‘Local Delivery’ at checkout after you enter your address

*This is an open box unit that is in working order.

Overall System
Operating Frequencies 2.4 GHz ISM band (2400 to 2483.5 MHz)
Frequency Response 20 Hz to 20 kHz Depending on microphone type
Operating Range 30 m (100') radius, 60 m (200') diameter typical
Open range environment with no interfering signals
Total Harmonic Distortion <0.05% typical
Operating Temperature Range 0° C to +40° C (32° F to 104° F)
Battery performance may be reduced at very low temperatures
Audio Sampling 24 bits / 48 kHz
Handheld Transmitter
RF Power Output 10 mW
Spurious Emissions Following federal and national regulations
Battery Type Two 1.5V AA not included
Battery Life >7 hours (alkaline) Depending on battery type and use pattern
Dimensions 254.8 mm (10.03") long, 50.0 mm (1.97") diameter
Net Weight 280 grams (9.9 oz) without batteries
Accessories Included AT8456a Quiet-Flex™ stand clamp
Body Pack
RF Power Output 10 mW
Battery Life >7 hours (alkaline) Depending on battery type and use pattern
Battery Type Two 1.5V AA not included
Dimensions 70.2 mm (2.76") W x 107.0 mm (4.21") H x 24.9 mm (0.98") D
Input Connections Four-pin Locking Connector Pin 1: GND, Pin 2: INST INPUT, Pin 3: MIC INPUT, Pin 4: DC BIAS +9V
Net Weight 100 grams (3.5 oz) without batteries
Spurious Emissions Following federal and national regulations
Receiver
Receiving System Diversity (frequency/time/space)
Maximum Output Level 3.5 mm (1/8"), TRS balanced: +6 dBV Dual mono, unbalanced: 0 dBV
Power Supply 100-240V AC (50/60 Hz) to 5V DC 0.5A switched mode external USB-type external power supply
Operating Temperature Range 40° F (4° C) to 110° F (43° C)
Dimensions 56.0 mm (2.20") W x 91.4 mm (3.60") H x 27.8 mm (1.09") D
Weight 105 grams (3.7 oz)
Accessories Included Two antennas; camera shoe mount; AC adapter (USB-type); USB cable; 3.5 mm (1/8") stereo cable
Battery Current/Life 12 hours Depending on environmental conditions Battery Charging Time: 4 hours 30 minutes Depending on environmental conditions Charging Temperature Range: 5° C to +35° C (41° F to 95° F)
Battery Type Internal Battery: 3.7V rechargeable Li-ion battery
Battery Rating: 5.5 Wh
1,460 mAh
