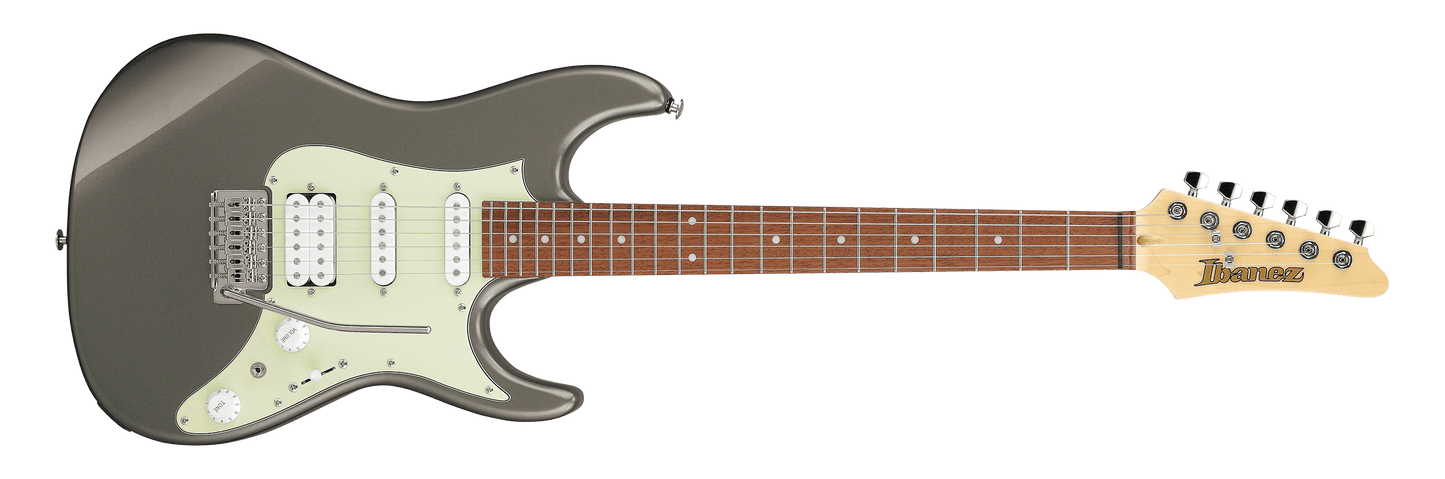

Ibanez AZES40 Tungsten, Electric Guitar

SPECS

• neck type
  AZESMaple neck
• top/back/body
  Poplar body

  • SPECS

    • neck type
      AZESMaple neck
    • top/back/body
      Poplar body
    • fretboard
      Jatoba fretboardWhite dot inlay
    • fret
      Medium frets
    • number of frets
      22
    • bridge
      T106 bridge w/ Comfort round Steel saddles
    • string space
      10.5mm
    • neck pickup
      Essentials (S) neck pickupPassive/Ceramic
    • middle pickup
      Essentials (S) middle pickupPassive/Ceramic
    • bridge pickup
      Accord (H) bridge pickupPassive/Ceramic
    • factory tuning
      1E,2B,3G,4D,5A,6E
    • strings
      D'Addario® EXL110
    • string gauge
      .010/.013/.017/.026/.036/.046
    • hardware color
      Chrome

  • NECK DIMENSIONS

    • • Scale :
        635mm/25"
      • a : Width
        42mm at NUT
      • b : Width
        56.4mm at 22F
      • c : Thickness
        20.5mm at 1F
      • d : Thickness
        22.5mm at 12F
      • Radius :
        250mmR
• fretboard
  Jatoba fretboardWhite dot inlay
• fret
  Medium frets
• number of frets
  22
• bridge
  F106 bridge w/ Comfort round Steel saddles
• string space
  10.5mm
• neck pickup
  Essentials (S) neck pickupPassive/Ceramic
• middle pickup
  Essentials (S) middle pickupPassive/Ceramic
• bridge pickup
  Essentials (S) bridge pickupPassive/Ceramic
• factory tuning
  1E,2B,3G,4D,5A,6E
• strings
  D'Addario® EXL110
• string gauge
  .010/.013/.017/.026/.036/.046
• hardware color
  Chrome

NECK DIMENSIONS
