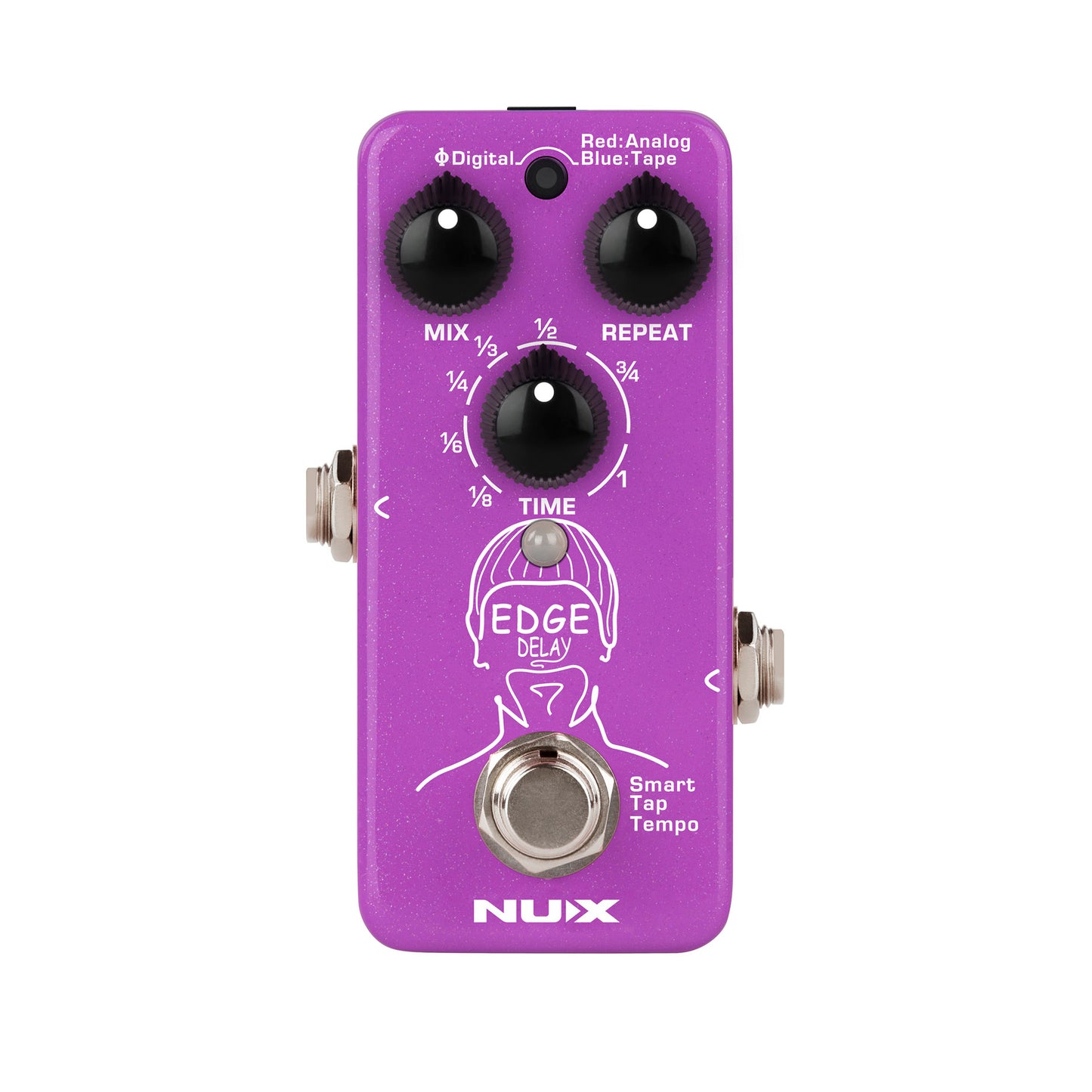

NUX Edge Delay 3 Delay Types with Smart Tap
NUX Edge Delay 3 Delay Types with Smart Tap
FREE SHIPPING OVER $40 PURCHASES! exceptions -- Local Pickup Available
--We are now offering free local delivery on purchases over $100!-- If you are within 5 miles from one of our locations, just select ‘Local Delivery’ at checkout after you enter your address
Couldn't load pickup availability
The Dotted Eighth is the edge of this delay’s beauty.
The Edge Delay Provides You With 3 Unique Delays, Each Including Acurate Control Over Its Sonic Character and Feel. Clear, Studio-Quality Digital Delays. Saturated and Fluctuating Sounds of Tape Delay Machines. Warm and Fuzzy Analog Style Repeats.
The Edge delay (NDD-3) is a mini delay pedal with 3 different delay types including ΦPhi Digital Delay, Analog Delay, and Tape Echo. You can switch delay types by pressing and holding the footswitch.
ΦPhi Digital Delay is a digital delay with a golden ratio 2nd repeat head. It makes your guitar sounds more musical in nature. Easily tweak the knobs, setup the desired sub-division, engage the smart tap tempo, and you’re ready to go.
Tape Echo is based on the legendary Space Echo machine. We digitally recreated the retro-feel of a real tape and capstan configuration. The Tape Echo emulates the high-frequency saturation and low-end decay of magnetic tape. It’s gently modulated for added richness and color. Tweak the time knob from max to min quickly, and you can get the infinity feedback.
Analog Delay is based on the vintage BBD (Bucket Brigade Device) delay. It produces a very warm sound with natural treble decay. Very suitable for scorching ballad solos with romantic atmosphere. Our unique algorithm replicates the physical infinity oscillation feedback while you tweak the time knob from max to min quickly.
Sub-Division with Smart Tap Tempo
DELAY SUB-DIVISIONS WITH SMART TAP TEMPOSet the Time knob parameter to your desired sub-division, then you can engage the smart tap tempo by pressing the footswitch twice to get a dynamic sub-division tap tempo delay.
Press the footswitch once to engage/disengage the effect. Press twice, to access Smart Tap Tempo. In the meantime, the delay time is related to tap tempo and current sub-division parameter. (The FS indicator will flash as current BPM.)
Specs:
Input Impedance: 1MΩ
– Output Impedance: 10kΩ
– Dynamic Range: 103dB
– DSP Processing: 48KHz/32-bit
– A/D D/A Sampling Rate: 48KHz/24-bit
– Power: 9V DC (Negative tip, Optional ACD-006A adapter)
– Current Draw: less than 100mA
– Dimensions: 194(L)x51(W)x53(H)mm
– Weight: 175g
