YAMAHA

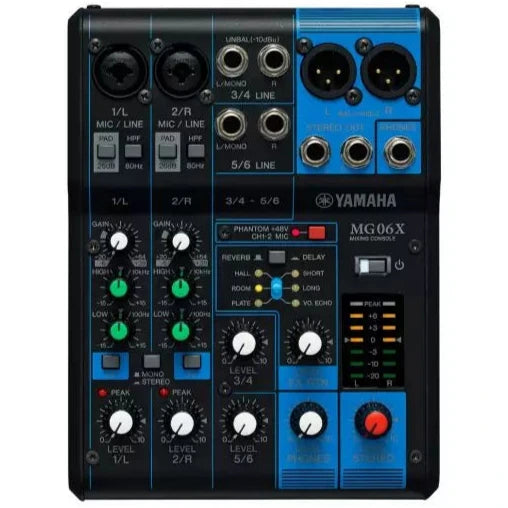

Yamaha MG-06X compact Mixer with effets

Yamaha MG-06X compact Mixer with effets

$169.99 USD
$169.99 USD
Sale Sold out
Shipping calculated at checkout.

FREE SHIPPING OVER $40 PURCHASES! exceptions -- Local Pickup Available

--We are now offering free local delivery on purchases over $100!-- If you are within 5 miles from one of our locations, just select ‘Local Delivery’ at checkout after you enter your address

6-Channel Mixing Console

  • Max. 2 Mic / 6 Line Inputs (2 mono + 2 stereo)
  • 1 Stereo Bus
  • “D-PRE” mic preamps with an inverted Darlington circuit
  • High-grade effects: SPX with 6 programs
  • XLR balanced outputs
  • PAD switch on mono inputs
  • +48V phantom power
  • Metal chassis

Specs:

Mixing capability

On-board processors SPX algorithm: 6 programs

I/O

Phantom power +48 V

Input Channels

Mono[MIC/LINE] 2
Stereo[LINE] 2

Output Channels

STEREO OUT 2
PHONES 1

Bus

Stereo: 1

Input Channel Function

PAD 26 dB (Mono)
HPF 80 Hz, 12 dB/oct (Mono)
EQ HIGH (Mono) Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ LOW (Mono) Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LED LED turns on when post EQ signal reaches 3 dB below clipping
Level Meter 2 x 7 -segment LED meter [PEAK, +6, +3, 0, -3, -10, -20 dB]

Total harmonic distortion

0.01 % @ +8dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +18dBu (1kHz), GAIN knob: Min

Frequency response

+0.5 dB/-0.5 dB (20 Hz to 20 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min

Hum & noise level

Equivalent input noise -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
Residual output noise -102 dBu (STEREO OUT, STEREO LEVEL knob: Min)

Crosstalk

-88 dB

Power requirements

PA-130 (DC12 V/1.0 A, Cable length = 1.8 m), 120 V, 60 Hz, MU18 (DC12 V/1.5 A, Cable length = 1.5 m), 100 V-240 V, 50 Hz/60 Hz or equivalent recommended by Yamaha

Power consumption

12 W

Dimensions

W 149 mm (5.9")
H 62 mm (2.4")
D 202 mm (7.9")

Net weight

0.9 kg (1.98 lbs.)

Accessories

Included Accessory: AC Adaptor, Owner’s Manual, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10A

Others

Operating Temperature: 0 to +40˚C
