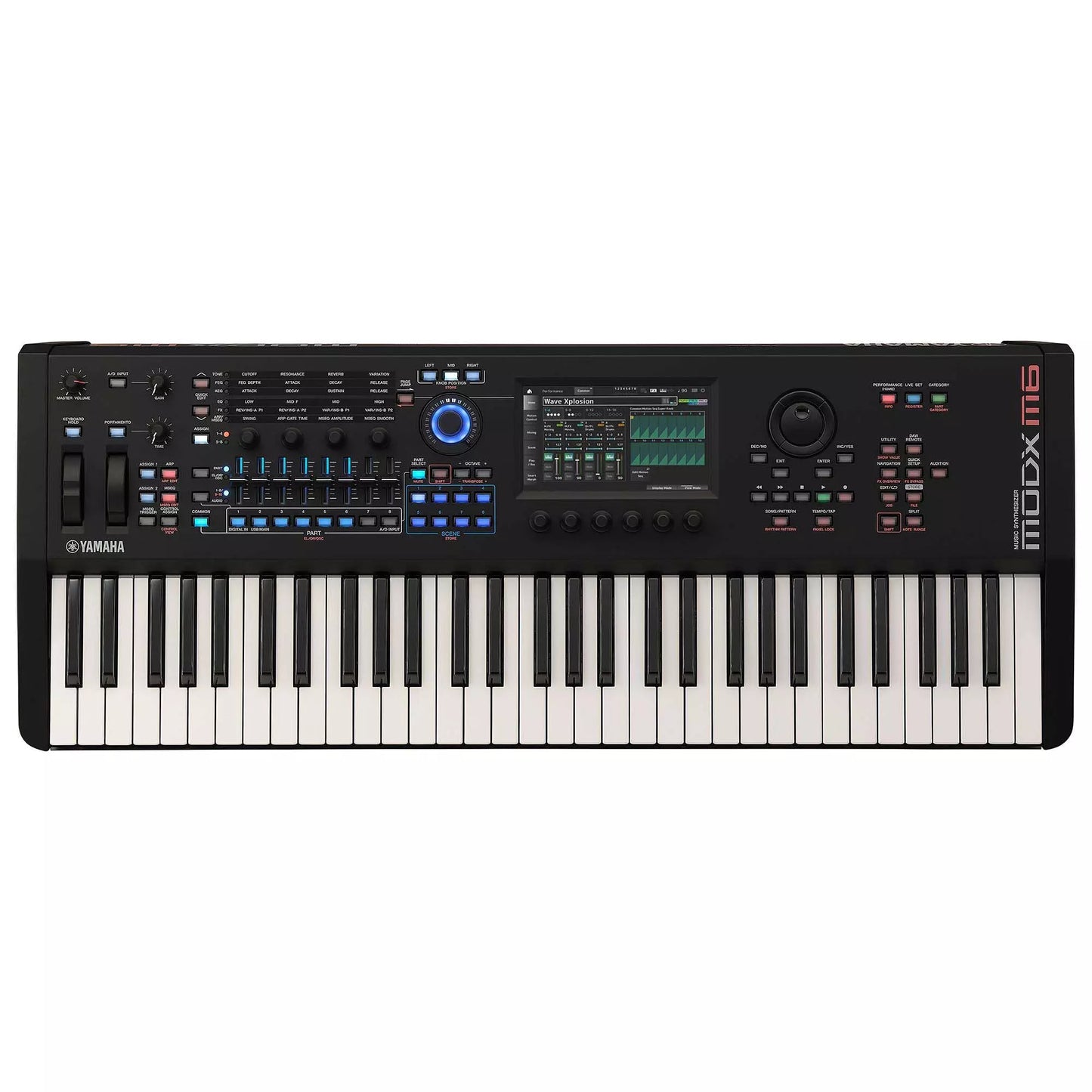

Yamaha MODX M6 61-Key Synthesizer
Yamaha MODX M6 61-Key Synthesizer
FREE SHIPPING OVER $40 PURCHASES! exceptions -- Local Pickup Available
--We are now offering free local delivery on purchases over $100!-- If you are within 5 miles from one of our locations, just select ‘Local Delivery’ at checkout after you enter your address
Couldn't load pickup availability
Built for working musicians, the MODX M Series combines expressive control, streamlined workflow, and exceptional sound in a lightweight design perfect for stage or studio.
- Exceptional Sound: 3 powerful engines recreate classic analog synths, modern FM synths, and realistic instruments for a variety of sounds
- Expressive Control: Intuitive performance controls, including 8 physical faders and Super Knob, give you real-time hands-on expression
- Optimized Workflow: Upgraded navigation enables quick, intuitive sound editing and operation with features like a color touchscreen and 6 dedicated display knobs
- Improved Keyboard Action: 61 semi-weighted keys deliver faster, more substantial feeling synth action for improved playability when compared to MODX+
- Stage and Studio Integration: Expanded Softsynth Plugin (ESP) replicates MODX M in your favorite DAW - create, edit and mix sounds anywhere
INSPIRED PERFORMANCE
Take your performance anywhere with the compact, lightweight MODX M featuring three powerful engines:
-
AN-X – recreates warm vintage analog synths
-
FM-X – offers cutting-edge modern synth sound
-
AWM2 – delivers ultra-realistic instrument sounds
Plus, MODX M offers an upgrade of up to 268 notes of polyphony across its three engines and approximately 2x the memory over MODX/MODX+ with an increase from 5.68GB to 10.7GB of AWM2 memory, and 1.9GB of User flash memory.
UNIQUE EXPRESSION
You’ll find dedicated Part and Scene Selection buttons to control 8 Parts per Performance. Particularly beneficial for live performances, this intuitive control improves overall usability and adds dimension to each Performance.
The MODX M Knobs, Super Knob, Pitch Bend, Mod Wheel, and Sound Engine are now High Resolution. Because of the fine resolution, you’ll find the MODX M performs smoother than its predecessors.
EXPANDED CREATIVITY
Free for all registered MODX M owners, the Expanded Softsynth Plugin (ESP) replicates MODX M in your favorite Digital Audio Workstation (DAW). ESP lets you create, edit and mix performances anywhere you happen to be – without the hardware – offering an unprecedented level of stage and studio integration. (Available early 2026)
Upgraded navigation enables quick, intuitive sound editing and operation. You’ll find features like a color touchscreen, 6 display knobs, and Stereo A/D input with 2 insertion effects.
AN-X Engine
Integrated into the Motion Control system, the AN-X Engine includes 2 filters, 10 filter types, pulse width modulation, oscillator self sync, ring modulation, FM and wave share, and voltage drift and aging settings.
AWM2
Offering up to 128 Elements per Part, AWM2 allows for more layers and articulations, giving you an expansive canvas for sound creation, especially for “nameable” sounds such as piano and strings.
Simplify Your Studio Setup
USB MIDI 2.0 and multichannel 10 output/4 input audio interface streamline MIDI recording, virtual instrument monitoring, and multi-track audio recording through a single USB cable.
Cubase AI
Cubase AI provides the basic tools for recording, editing and mixing. It’s the perfect entry into the world of Digital Audio Workstations (DAW), offering powerful, yet easy-to-use software tools for all genres.
Eight Faders
Eight physical faders provide real-time performance, mixing and editing control.
Specs:
Dimensions
| Width | 882 mm (34-3/4") |
| Height | 117 mm (4-5/8") |
| Depth | 347 mm (13-11/16") |
Weight
| Weight | 6.6 kg (14 lb, 9 oz) |
Keyboard
| Number of Keys | 61 |
| Type | Semi-weighted FSB Keyboard |
| Initial Touch | Yes |
| Aftertouch | No |
Tone Generator
| Motion Control Synthesis Engine AMW2: 128 Elements (max.), FM-X: 8 Operators, 88 Algorithms, AN-X: 3 Oscillators, 1 Noise |
Maximum Polyphony
| AWM2: 128 (max.; stereo/mono waveforms), FM-X: 128 (max.), AN-X: 12 (max.) |
Multi Timbral Capacity
| 16 Parts (internal), Audio Input Parts (A/D*1, USB*1) *1 stereo Part |
Wave
| Preset: 10.7 GB (when converted to 16-bit linear format), User: 1.9 GB |
Performance
| 3,427 |
Filter
| 18 types |
Effects
| Reverb x 13 types, Variation x 88 types, Insertion A x 88 types*2, Insertion B x 89 types*3, Master Effect x 26 type, *2 A/D part insertion x 83 types *3 Part 2~16: 88 type, A/D part insertion x 83 types (Preset settings for parameters of each effect type are provided as templates) Master EQ (5 bands), 1st part EQ (3 bands), 2nd part EQ (2 bands) |
Note Capacity
| 1 Song/Pattern: Approx. 130,000 notes, Store area: Approx. 520,000 notes (Pattern); approx. 520,000 notes (Song) |
Note Resolution
| 480 ppq (parts per quarter note) |
Tempo (BPM)
| 5 – 300 |
Sequence formats
| MONTAGE M/MODX M original format, SMF formats 0, 1 |
Arpeggio
| Parts: 8 Parts simultaneous (max.), Preset: 10,922 types or more, User: 256 types |
Patterns
| 128 patterns |
Pattern tracks
| 16 Sequence tracks |
Pattern Recording type
| Real time replace, Real time overdub |
Songs
| 128 songs |
Song tracks
| 16 Sequence tracks, Tempo track, Scene track |
Song recording type
| Real time replace, Real time overdub, Real time punch in/out |
USB audio interface
| [Sampling Frequency = 44.1 kHz] Input: 4 channels (2 stereo channels), Output: 10 channels (5 stereo channels) [Sampling Frequency = 44.1kHz / 48kHz / 96kHz] Input: 2 channels (1 stereo channel), Output: 2 channels (1 stereo channel) |
Controllers
| Master Volume, A/D Input Gain knob, Pitch Bend wheel, Modulation wheel, Control Slider x 8, Knob x 4, Super knob, Display knob x 6, Portamento knob, Data Dial, Assignable swich x 2, MSEQ trigger switch, Portamento switch, Keyboard hold switch |
Display
| 7" TFT Color Wide VGA LCD touchscreen |

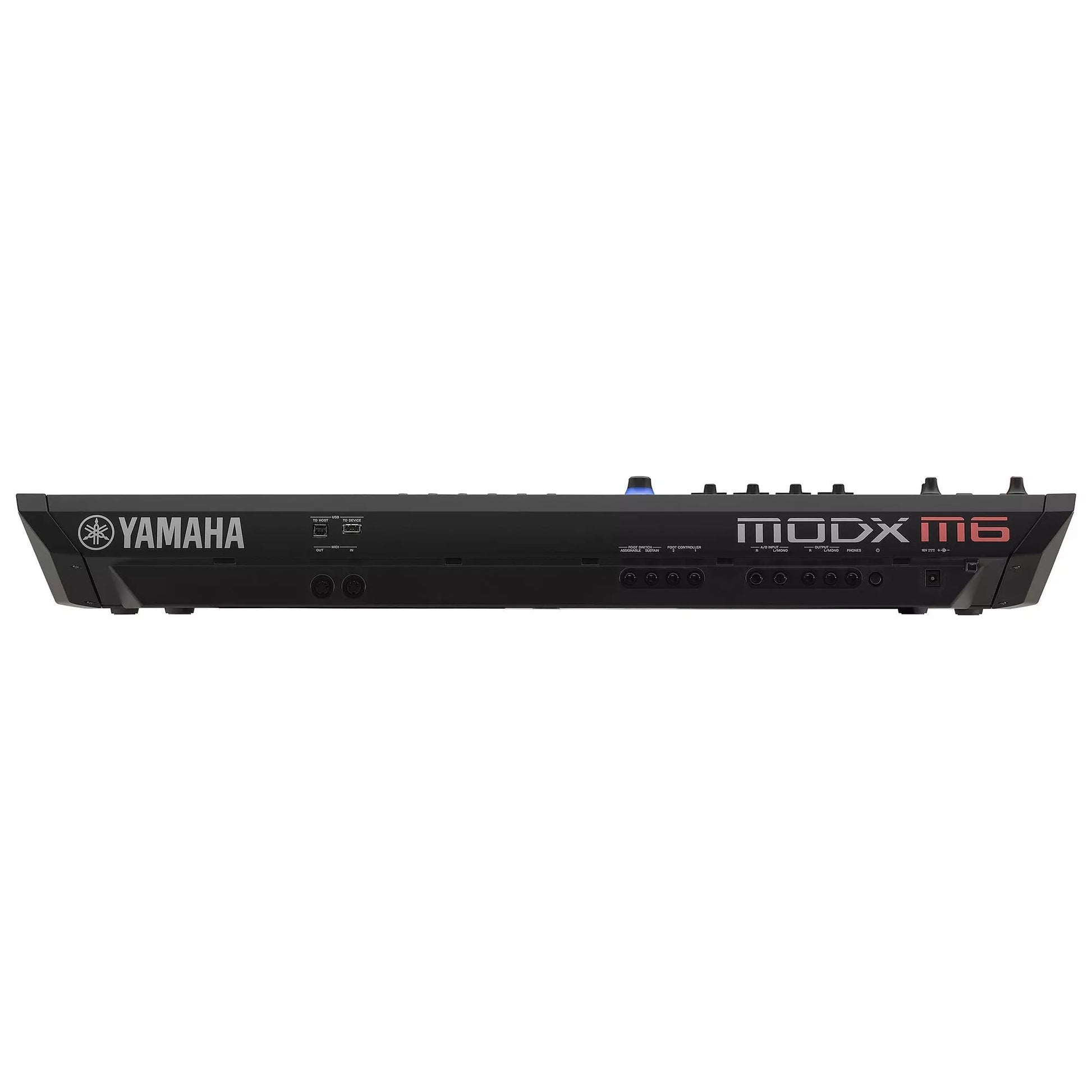

Connectors
| USB [TO DEVICE], USB [TO HOST], MIDI [IN]/[OUT], FOOT CONTROLLER [1]/[2], FOOT SWITCH [SUSTAIN]/[ASSIGNABLE], OUTPUT [L/MONO]/[R] (6.3 mm, standard phone jacks), [PHONES] (6.3 mm, standard stereo phone jack), A/D INPUT [L/MONO]/[R] (6.3 mm, standard phone jacks) |
Power Consumption
| 19 W (When using PA-300C AC adaptor) |
Accessories
| AC adaptor: PA-300C, Quick guide, Cubase AI Download Information, Expanded Softsynth Plugin for MONTAGE M/MODX M Download Information, About downloading manuals, Welcome card |
Live Sets
| Preset: 256, User: 2,048 |
